   Type Designator: AP6007S
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings


   Pd ⓘ - Maximum Power Dissipation: 3.2 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
   |Id| ⓘ - Maximum Drain Current: 12 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics


   tr ⓘ - Rise Time: 5.3 nS
   Cossⓘ - Output Capacitance: 215 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.012 Ohm
   Package: SOP8


 AP6007S substitution

   - MOSFET ⓘ Cross-Reference Search



AP6007S PDF Specs

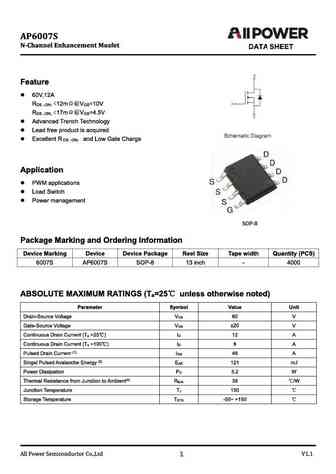

 ..1. Size:562K  allpower
 ap6007s.pdf pdf_icon

AP6007S

... See More ⇒

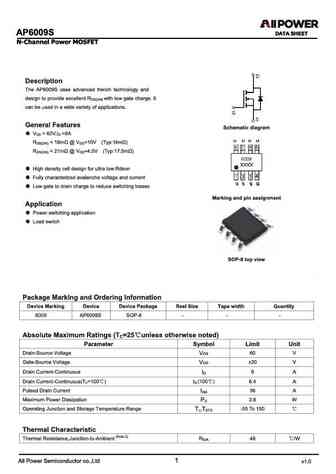

 9.1. Size:1816K  allpower
 ap6009s.pdf pdf_icon

AP6007S

... See More ⇒

Detailed specifications: AP50N06K , AP50P06K , AP50P20K , AP50P20Q , AP5N10M , AP5N10S , AP5N20K , AP5N50K , AO3407 , , , , , , , , .
