APG068N04Q Datasheet. Specs and Replacement

Type Designator: APG068N04Q  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 36.7 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 54 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 11 nS

Cossⓘ - Output Capacitance: 254 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0068 Ohm

Package: PDFN3X3-8L

  📄📄 Copy

APG068N04Q substitution

- MOSFET ⓘ Cross-Reference Search



APG068N04Q datasheet

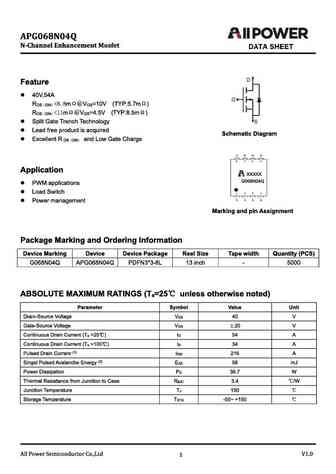

 ..1. Size:427K  allpower
 apg068n04q.pdf pdf_icon

APG068N04Q

... See More ⇒

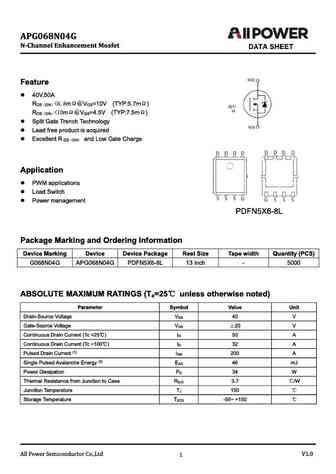

 5.1. Size:870K  allpower
