AOK500V120X2 MOSFET Datasheet: N-Ch, 1200V, 6.3A. Full specification with pinout and replacement list

AOK500V120X2 Specs and Replacement

Type Designator: AOK500V120X2

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 44 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 1200 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 18 V

|Id| ⓘ - Maximum Drain Current: 6.3 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 15 nS

Cossⓘ - Output Capacitance: 13.5 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.675 Ohm

Package: TO247

AOK500V120X2 substitution

- MOSFET ⓘ Cross-Reference Search

AOK500V120X2 datasheet

..1. Size:1302K aosemi
aok500v120x2.pdf pdf_icon

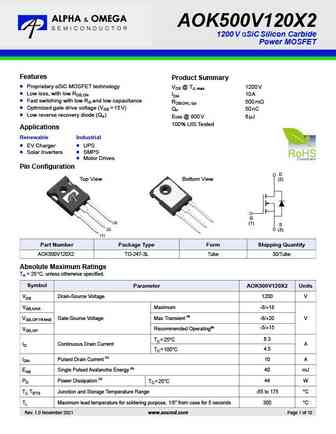

ALPHA & OMEGA AOK500V120X2 SEMICONDUCTOR 1200 V SiC Silicon Carbide Power MOSFET Features Product Summary VDS @ TJ, max 1200 V Proprietary SiC MOSFET technology IDM 10 A Low loss, with low RDS,ON RDS(ON), typ 500 m Fast switching with low RG and low capacitance Optimized gate drive voltage (VGS = 15 V) Q 50 nC rr Low reverse recovery diode (Qrr) E @... See More ⇒
