AOM033V120X2 PDF and Equivalents Search



AOM033V120X2 Specs and Replacement

Type Designator: AOM033V120X2

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 300 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 1200 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 18 V

|Id| ⓘ - Maximum Drain Current: 68 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 15.4 nS

Cossⓘ - Output Capacitance: 128 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.043 Ohm

Package: TO247-4L

AOM033V120X2 substitution

- MOSFET ⓘ Cross-Reference Search

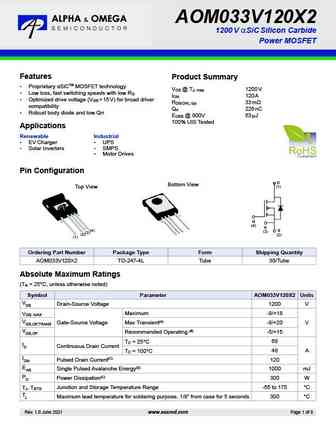

AOM033V120X2 datasheet

 ..1. Size:731K  aosemi
 aom033v120x2.pdf pdf_icon

AOM033V120X2

ALPHA & OMEGA AOM033V120X2 SEMICONDUCTOR 1200 V SiC Silicon Carbide Power MOSFET Features Product Summary Proprietary SiCTM MOSFET technology V @ T 1200 V DS J, max Low loss, fast switching speeds with low R G I 120 A DM Optimized drive voltage (V = 15 V) for broad driver GS R 33 m DS(ON), typ compatibility Q 226 nC rr Robust body diode and low Qr... See More ⇒

Detailed specifications: AO3481C , AOB29S50L , AOB380A60L , AOK033V120X2 , AOK033V120X2Q , AOK065V120X2 , AOK065V65X2 , AOK500V120X2 , AO3401 , AOM065V120X2Q , AONV070V65G1 , AOTF11S60L , AOTF27S60L , AOTF950A70L , , , .
