AOTF27S60L MOSFET Datasheet: N-Ch, 600V, 27A. Full specification with pinout and replacement list

AOTF27S60L Specs and Replacement

Type Designator: AOTF27S60L

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 40 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 600 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V

|Id| ⓘ - Maximum Drain Current: 27 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 33 nS

Cossⓘ - Output Capacitance: 80 pF

Rds ⓘ - Maximum Drain-Source On-State Resistance: 0.16 Ohm

Package: TO220F

AOTF27S60L substitution

- MOSFET ⓘ Cross-Reference Search

AOTF27S60L datasheet

..1. Size:1086K aosemi
aot27s60l aob27s60l aotf27s60l aotf27s60.pdf pdf_icon

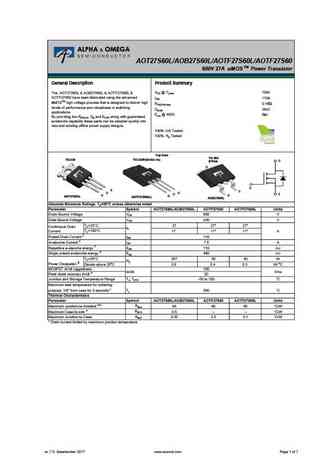

AOT27S60L/AOB27S60L/AOTF27S60L/AOTF27S60 TM 600V 27A MOS Power Transistor General Description Product Summary VDS @ Tj,max 700V The AOT27S60L & AOB27S60L & AOTF27S60L & AOTF27S60 have been fabricated using the advanced IDM 110A MOSTM high voltage process that is designed to deliver high RDS(ON),max 0.16 levels of performance and robustness in switching Qg,typ 26nC applic... See More ⇒

5.1. Size:376K aosemi
aot27s60 aob27s60 aotf27s60.pdf pdf_icon

AOT27S60/AOB27S60/AOTF27S60 TM 600V 27A MOS Power Transistor General Description Product Summary VDS @ Tj,max 700V The AOT27S60& AOB27S60 & AOTF27S60 have been fabricated using the advanced MOSTM high voltage IDM 110A process that is designed to deliver high levels of RDS(ON),max 0.16 performance and robustness in switching applications. Qg,typ 26nC By providin... See More ⇒

5.2. Size:295K aosemi
aotf27s60.pdf pdf_icon

5.3. Size:236K inchange semiconductor
aotf27s60.pdf pdf_icon

isc N-Channel MOSFET Transistor AOTF27S60 FEATURES Drain Current I = 27A@ T =25 D C Drain Source Voltage- V = 600V(Min) DSS Static Drain-Source On-Resistance R = 0.16 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRITION Be suitable for synchronous rectification for server and ge... See More ⇒

Detailed specifications: AOK033V120X2Q , AOK065V120X2 , AOK065V65X2 , AOK500V120X2 , AOM033V120X2 , AOM065V120X2Q , AONV070V65G1 , AOTF11S60L , SPP20N60C3 , AOTF950A70L , , , , , , , .
