Type Designator: AS6004

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.5 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 4 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 4 nS

Cossⓘ - Output Capacitance: 85 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.12 Ohm

Package: SOT23

AS6004 substitution

- MOSFET ⓘ Cross-Reference Search

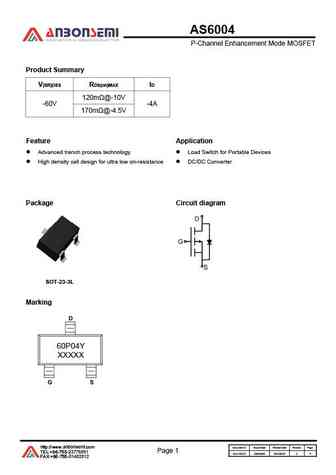

AS6004 datasheet

 ..1. Size:1719K  anbon
 as6004.pdf pdf_icon

AS6004

AS6004 P-Channel Enhancement Mode MOSFET Product Summary V R I (BR)DSS DS(on)MAX D 120m @-10V -60V -4A 170m @-4.5V Feature Application Advanced trench process technology Load Switch for Portable Devices High density cell design for ultra low on-resistance DC/DC Converter Package Circuit diagram SOT-23-3L Marking 60P04Y XXXXX http //www.anbonsemi.com Document I... See More ⇒
