CRTT067N10N Specs and Replacement

Type Designator: CRTT067N10N

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 280 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 25 V

|Id| ⓘ - Maximum Drain Current: 147 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 92 nS

Cossⓘ - Output Capacitance: 478 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0067 Ohm

Package: TO220

CRTT067N10N substitution

- MOSFET ⓘ Cross-Reference Search

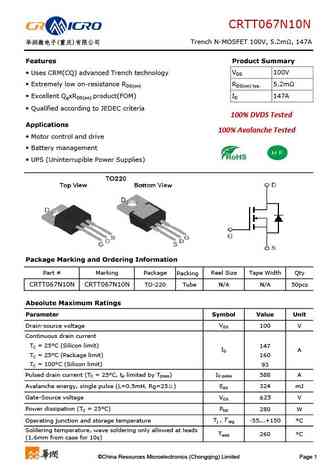

CRTT067N10N datasheet

 ..1. Size:510K  1
 crtt067n10n.pdf pdf_icon

CRTT067N10N

CRTT067N10N ( ) Trench N-MOSFET 100V, 5.2m , 147A Features Product Summary VDS Uses CRM(CQ) advanced Trench technology 100V Extremely low on-resistance RDS(on) RDS(on) typ. 5.2m Excellent QgxRDS(on) product(FOM) ID 147A Qualified according to JEDEC criteria 100% DVDS Tested 100% DVDS Tested 100% DVDS Tested Applications 100% Aval... See More ⇒

 9.1. Size:532K  crhj
 crtt029n06n.pdf pdf_icon

CRTT067N10N

CRTT029N06N ( ) Trench N-MOSFET 60V, 2.3m , 160A Features Product Summary VDS Uses CRM(CQ) advanced Trench technology 60V Extremely low on-resistance RDS(on) RDS(on) typ. 2.3m Excellent QgxRDS(on) product(FOM) ID 160A Qualified according to JEDEC criteria 100% DVDS Tested 100% DVDS Tested 100% DVDS Tested Applications 100% Avalan... See More ⇒

 9.2. Size:578K  crhj
 crtt056n06n.pdf pdf_icon

CRTT067N10N

CRTT056N06N ( ) Trench N-MOSFET 60V, 4.2m , 110A Features Product Summary VDS Uses CRM(CQ) advanced Trench technology 60V Extremely low on-resistance RDS(on) RDS(on) typ. 4.2m Excellent QgxRDS(on) product(FOM) ID 110A Qualified according to JEDEC criteria 100% DVDS Tested 100% DVDS Tested 100% DVDS Tested Applications Motor c... See More ⇒

 9.3. Size:501K  crhj
 crtt084ne6n.pdf pdf_icon

CRTT067N10N

CRTT084NE6N ( ) Trench N-MOSFET 68V, 7.1m , 81A Features Product Summary VDS Uses CRM(CQ) advanced Trench technology 68V Extremely low on-resistance RDS(on) RDS(on) typ. 7.1m Excellent QgxRDS(on) product(FOM) ID 81A Qualified according to JEDEC criteria 100% DVDS Tested 100% DVDS Tested 100% DVDS Tested Applications 100% Avalanch... See More ⇒
