MS40N05 Datasheet. Specs and Replacement

Type Designator: MS40N05  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 1.25 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 40 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 5 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 2.2 nS

Cossⓘ - Output Capacitance: 76 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.032 Ohm

Package: SOT23

  📄📄 Copy

MS40N05 substitution

- MOSFET ⓘ Cross-Reference Search



MS40N05 datasheet

 ..1. Size:733K  bruckewell
 ms40n05.pdf pdf_icon

MS40N05

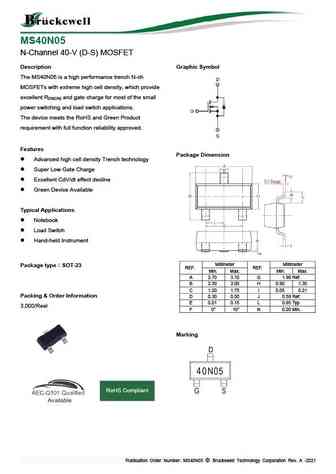

MS40N05 N-Channel 40-V (D-S) MOSFET Description Graphic Symbol The MS40N05 is a high performance trench N-ch MOSFETs with extreme high cell density, which provide excellent R and gate charge for most of the small DS(ON) power switching and load switch applications. The device meets the RoHS and Green Product requirement with full function reliability approved. Features Pac... See More ⇒
