MSB100N023 Datasheet. Specs and Replacement

Type Designator: MSB100N023  📄📄

Type of Transistor: MOSFET

Type of Control Channel: N-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 278 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 100 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 250 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 19.8 nS

Cossⓘ - Output Capacitance: 2020 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.0025 Ohm

Package: TO263

  📄📄 Copy

MSB100N023 substitution

- MOSFET ⓘ Cross-Reference Search



MSB100N023 datasheet

 ..1. Size:660K  bruckewell
 msb100n023.pdf pdf_icon

MSB100N023

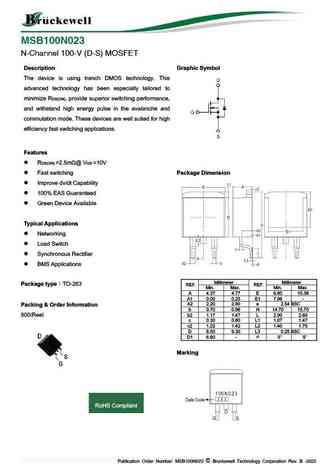

MSB100N023 N-Channel 100-V (D-S) MOSFET Description Graphic Symbol The device is using trench DMOS technology. This advanced technology has been especially tailored to minimize R , provide superior switching performance, DS(ON) and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency fast switching applications. ... See More ⇒
