BC2301 Datasheet. Specs and Replacement

Type Designator: BC2301  📄📄

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 0.35 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V

|Id| ⓘ - Maximum Drain Current: 2 A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 35 nS

Cossⓘ - Output Capacitance: 75 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.112 Ohm

Package: SOT23

  📄📄 Copy

BC2301 substitution

- MOSFET ⓘ Cross-Reference Search



BC2301 datasheet

 ..1. Size:369K  cn cbi

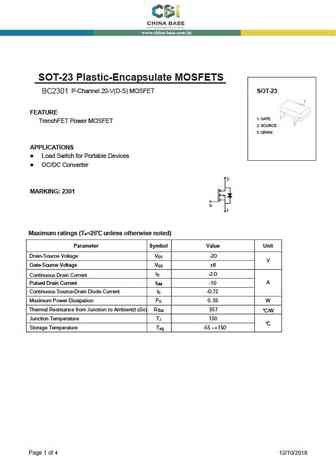

 bc2301.pdf pdf_icon

BC2301

SOT-23 Plastic-Encapsulate MOSFETS P-Channel 20-V(D-S) MOSFET SOT-23 BC2301 FEATURE 1. GATE TrenchFET Power MOSFET 2. SOURCE 3. DRAIN APPLICATIONS z Load Switch for Portable Devices z DC/DC Converter MARKING 2301 Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -20 V Gate-Source Voltage VGS 8 ID -2.0 Conti... See More ⇒

 0.1. Size:1259K  cn cbi

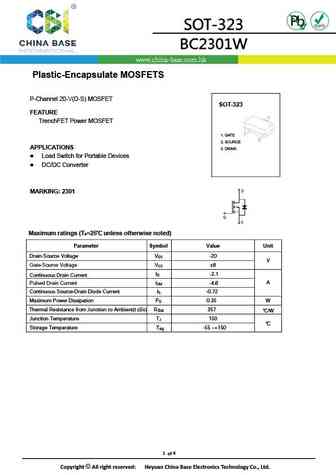

 bc2301w.pdf pdf_icon

BC2301

Plastic-Encapsulate MOSFETS P-Channel 20-V(D-S) MOSFET SOT-323 FEATURE TrenchFET Power MOSFET 1. GATE 2. SOURCE APPLICATIONS 3. DRAIN z Load Switch for Portable Devices z DC/DC Converter MARKING 2301 Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -20 V Gate-Source Voltage VGS 8 ID -2.1 Continuous Drain C... See More ⇒

 0.2. Size:1550K  cn cbi

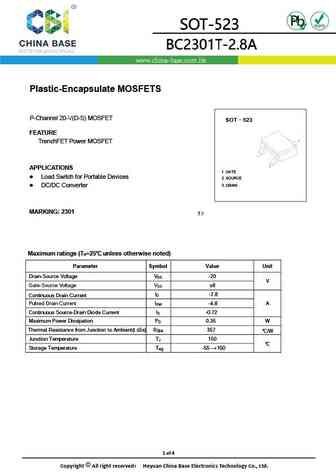

 bc2301t-2.8a.pdf pdf_icon

BC2301

Plastic-Encapsulate MOSFETS P-Channel 20-V(D-S) MOSFET SOT 523 FEATURE TrenchFET Power MOSFET APPLICATIONS 1. GATE z Load Switch for Portable Devices 2. SOURCE 3. DRAIN z DC/DC Converter MARKING 2301 Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS -20 V Gate-Source Voltage VGS 8 ID -2.8 Continuous Drain... See More ⇒

 9.1. Size:1438K  cn cbi

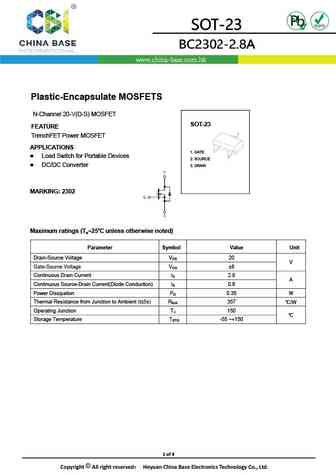

 bc2302-2.8a.pdf pdf_icon

BC2301

Plastic-Encapsulate MOSFETS N-Channel 20-V(D-S) MOSFET SOT-23 FEATURE TrenchFET Power MOSFET APPLICATIONS 1. GATE Load Switch for Portable Devices 2. SOURCE DC/DC Converter 3. DRAIN MARKING 2302 Maximum ratings (Ta=25 unless otherwise noted) Parameter Symbol Value Unit Drain-Source Voltage VDS 20 V Gate-Source Voltage VGS 8 Continuous Drain Current ID 2.8 A... See More ⇒

SHOW MORE
