CES2312A Datasheet PDF and Equivalents Search

 ..1. Size:517K  cet
 ces2312a.pdf

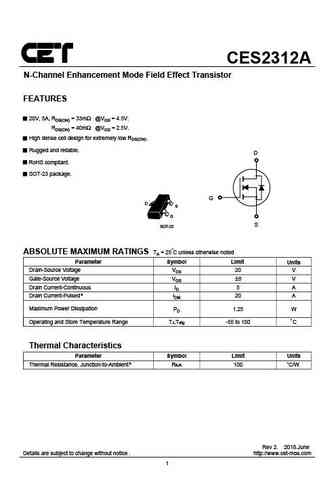

CES2312A N-Channel Enhancement Mode Field Effect Transistor FEATURES 20V, 5A, RDS(ON) = 33m @VGS = 4.5V. RDS(ON) = 40m @VGS = 2.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. D RoHS compliant. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source Voltage VDS 20 V ... See More ⇒

 7.1. Size:275K  cet
 ces2312.pdf

CES2312 N-Channel Enhancement Mode Field Effect Transistor FEATURES 20V, 4.5A, RDS(ON) = 33m @VGS = 4.5V. RDS(ON) = 40m @VGS = 2.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. D Lead free product is acquired. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source Vo... See More ⇒

 8.1. Size:390K  cet
 ces2317.pdf

CES2317 P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -3.1A, RDS(ON) = 80m @VGS = -10V. RDS(ON) = 90m @VGS = -4.5V. RDS(ON) = 120m @VGS = -2.5V. High dense cell design for extremely low RDS(ON). D Rugged and reliable. Lead-free plating ; RoHS compliant. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Par... See More ⇒

 8.2. Size:141K  cet
 ces2316.pdf

CES2316 N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 4.8A, RDS(ON) = 34m @VGS = 10V. RDS(ON) = 50m @VGS = 4.5V. High dense cell design for extremely low RDS(ON). Lead free product is acquired. D Rugged and reliable. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source Vol... See More ⇒

 8.3. Size:1084K  cet
 ces2310.pdf

CES2310 N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 4.8A, RDS(ON) = 34m @VGS = 10V. RDS(ON) = 38m @VGS = 4.5V. RDS(ON) = 50m @VGS = 2.5V. RDS(ON) = 60m @VGS = 1.8V. D High dense cell design for extremely low RDS(ON). Rugged and reliable. Lead-free plating ; RoHS compliant. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C u... See More ⇒

 8.4. Size:597K  cet
 ces2313.pdf

CES2313 P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -3.6A, RDS(ON) = 60m @VGS = -10V. RDS(ON) = 90m @VGS = -4.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. D Lead free product is acquired. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source... See More ⇒

 8.5. Size:139K  cet
 ces2314.pdf

CES2314 N-Channel Enhancement Mode Field Effect Transistor FEATURES 30V, 4A, RDS(ON) = 50m @VGS = 10V. RDS(ON) = 70m @VGS = 4.5V. High dense cell design for extremely low RDS(ON). Lead free product is acquired. D Rugged and reliable. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source Volta... See More ⇒

 8.6. Size:409K  cet
 ces2313a.pdf

CES2313A P-Channel Enhancement Mode Field Effect Transistor FEATURES -30V, -3.8A, RDS(ON) = 55m @VGS = -10V. RDS(ON) = 86m @VGS = -4.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. D Lead free product is acquired. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Sourc... See More ⇒

 8.7. Size:1675K  cn vbsemi
 ces2314.pdf

CES2314 www.VBsemi.tw N-Channel 30-V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( ) ID (A)a Qg (Typ.) Definition 0.030 at VGS = 10 V TrenchFET Power MOSFET 6.5 30 4.5 nC 100 % Rg Tested 0.033 at VGS = 4.5 V 6.0 Compliant to RoHS Directive 2002/95/EC APPLICATIONS DC/DC Converter D TO-236 (SOT-23) G ... See More ⇒
