CES2361 Datasheet. Specs and Replacement
Type Designator: CES2361 📄📄
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Absolute Maximum Ratings
Pd ⓘ - Maximum Power Dissipation: 1.25 W
|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V
|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V
|Id| ⓘ - Maximum Drain Current: 2.2 A
Tj ⓘ - Maximum Junction Temperature: 150 °C
Electrical Characteristics
tr ⓘ - Rise Time: 4 nS
Cossⓘ - Output Capacitance: 80 pF
RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.15 Ohm
Package: SOT23
📄📄 Copy
- MOSFET ⓘ Cross-Reference Search

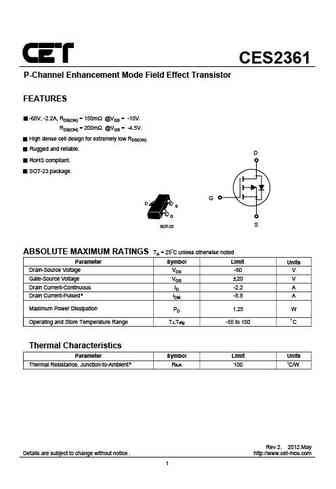

CES2361 datasheet
..1. Size:508K cet
ces2361.pdf
CES2361 P-Channel Enhancement Mode Field Effect Transistor FEATURES -60V, -2.2A, RDS(ON) = 150m @VGS = -10V. RDS(ON) = 200m @VGS = -4.5V. High dense cell design for extremely low RDS(ON). Rugged and reliable. D RoHS compliant. SOT-23 package. G D S G S SOT-23 ABSOLUTE MAXIMUM RATINGS TA = 25 C unless otherwise noted Parameter Symbol Limit Units Drain-Source Voltage VDS ... See More ⇒
