JMSL04055GQ
Даташит. Основные параметры и характеристики. Поиск аналогов
Наименование прибора: JMSL04055GQ
Тип транзистора: MOSFET
Полярность: N
Pd ⓘ - Максимальная рассеиваемая мощность: 107
W
|Vds|ⓘ - Предельно допустимое напряжение сток-исток: 40
V
|Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 20
V
|Id| ⓘ - Максимально
допустимый постоянный ток стока: 119
A
Tj ⓘ - Максимальная температура канала: 175
°C
tr ⓘ -
Время нарастания: 26
ns
Cossⓘ - Выходная емкость: 633
pf
Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.004
Ohm
Тип корпуса:
PDFN5X6-8L
Аналог (замена) для JMSL04055GQ
-
подбор ⓘ MOSFET транзистора по параметрам
JMSL04055GQ
Datasheet (PDF)
..1. Size:1190K jiejie micro

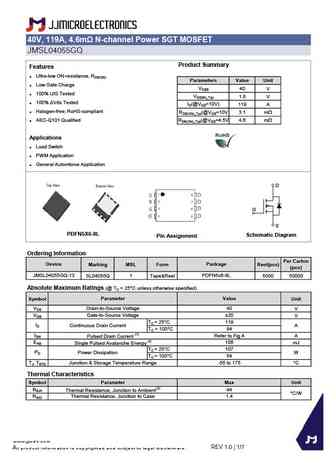

jmsl04055gq.pdf
40V, 119A, 4.6m N-channel Power SGT MOSFETJMSL04055GQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON) ParametersValue Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.8 V 100% Vds TestedID(@VGS=10V) 119 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 3.1 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 4.6 mWApplications
5.1. Size:1236K jiejie micro

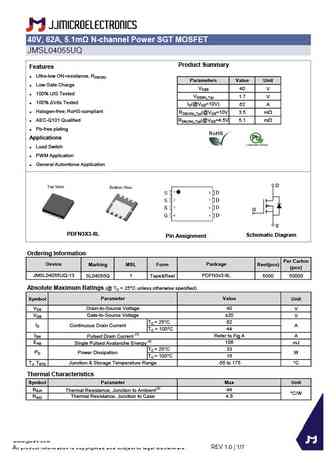

jmsl04055uq.pdf
40V, 62A, 5.1m N-channel Power SGT MOSFETJMSL04055UQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON) ParametersValue Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.7 V 100% Vds TestedID(@VGS=10V) 62 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 3.5 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 5.1 mW Pb-free plating
7.1. Size:289K 1
jmsl0406ag.pdf
JMSL0406AG40V 4.2m N-Ch Power MOSFETFeatures Product SummaryParameter Typ. Unit Ultra-low RDS(ON) VDS40 V Low Gate Charge VGS(th)1.7 V High Current Capability ID (@ VGS = 10V) (1) 70 A 100% UIS Tested, 100% Rg Tested RDS(ON) (@ VGS = 10V)4.2 mApplications Power Management in Computing, CE, IE 4.0, Communications Current Switching in DC/DC
7.2. Size:557K jiejie micro
jmsl0406agdq.pdf
JMSL0406AGDQ40V 5.5mW Dual N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.6 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 49 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)5.5 mW RDS(ON)_Typ (@ VGS = 4.5V)7.0 mW Halogen-free and RoHS-compliant AEC-Q101 Qu
7.3. Size:1308K jiejie micro

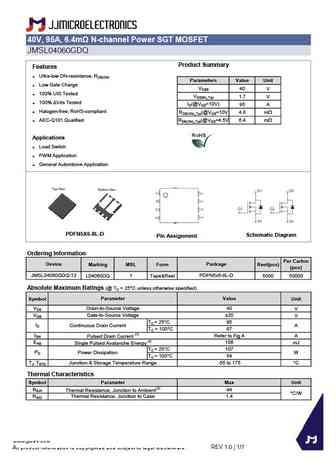

jmsl04060gdq.pdf
40V, 95A, 6.4m N-channel Power SGT MOSFETJMSL04060GDQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON) ParametersValue Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.7 V 100% Vds TestedID(@VGS=10V) 95 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 4.8 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 6.4 mWApplications
7.6. Size:1229K jiejie micro

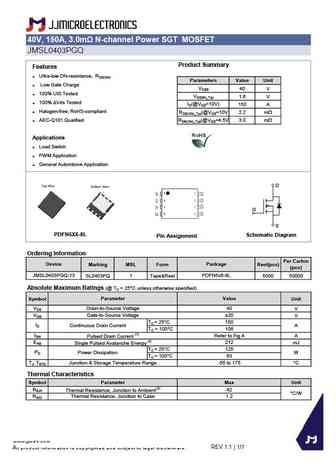

jmsl0403pgq.pdf
40V, 150A, 3.0m N-channel Power SGT MOSFETJMSL0403PGQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON) ParametersValue Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.6 V 100% Vds TestedID(@VGS=10V) 150 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 2.2 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 3.0 mWApplications
7.7. Size:1197K jiejie micro

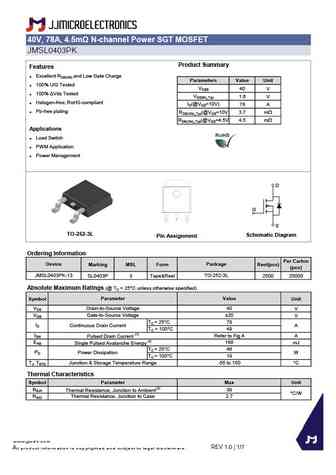

jmsl0403pk.pdf
40V, 78A, 4.5m N-channel Power SGT MOSFETJMSL0403PKProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 78 A Pb-free platingRDS(ON)_Typ(@VGS=10V 3.7 mWRDS(ON)_Typ(@VGS=4.5V 4.5 mWApplications Load Switch PWM
7.8. Size:290K jiejie micro

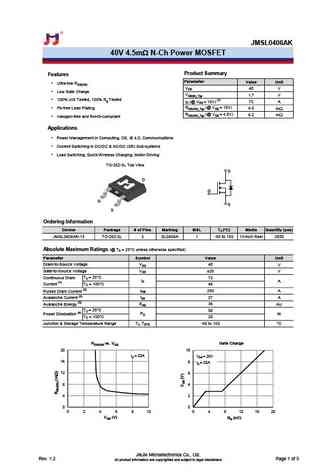

jmsl0406ak.pdf
JMSL0406AK40V 4.5m N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Ultra-low RDS(ON) VDS40 V Low Gate Charge VGS(th)_Typ1.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 73 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)4.5 m RDS(ON)_Typ (@ VGS = 4.5V)6.2 m Halogen-free and RoHS-compliantApplications Power M
7.9. Size:1192K jiejie micro
jmsl0402tg.pdf
40V, 163A, 2.9m N-channel Power SGT MOSFETJMSL0402TGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.7 V Halogen-free; RoHS-compliantID(@VGS=10V) 163 ARDS(ON)_Typ(@VGS=10V 1.9 mWApplications RDS(ON)_Typ(@VGS=4.5V 2.9 mW Load Switch PWM Application Pow
7.11. Size:400K jiejie micro
jmsl0406agq.pdf
JMSL0406AGQ40V 4.2m N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.6 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 90 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)4.2 m RDS(ON)_Typ (@ VGS = 4.5V)5.8 m Halogen-free and RoHS-compliant AEC-Q101 Qu
7.13. Size:306K jiejie micro
jmsl0402ak.pdf
JMSL0402AK40V 1.8m N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Ultra-low RDS(ON) VDS40 V Low Gate Charge VGS(th)_Typ1.5 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 150 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 1.8 m RDS(ON)_Typ (@ VGS = 4.5V)2.2 m Halogen-free and RoHS-compliantApplications Power
7.14. Size:571K jiejie micro

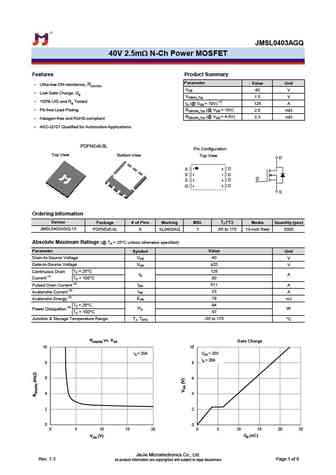

jmsl0403agq.pdf
JMSL0403AGQ40V 2.5mW N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.5 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 128 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)2.5 mW RDS(ON)_Typ (@ VGS = 4.5V)3.3 mW Halogen-free and RoHS-compliant AEC-Q101 Qualifi
7.17. Size:301K jiejie micro

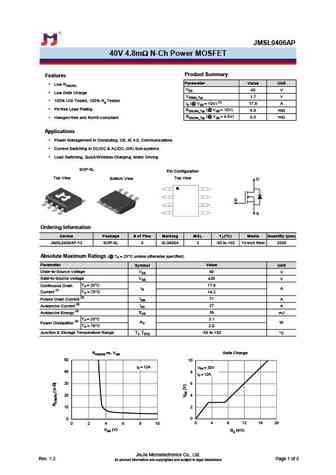

jmsl0406ap.pdf
JMSL0406AP40V 4.8m N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Low RDS(ON) VDS40 V Low Gate Charge VGS(th)_Typ1.7 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 17.8 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)4.8 m RDS(ON)_Typ (@ VGS = 4.5V)6.0 m Halogen-free and RoHS-compliantApplications Power Manage
7.18. Size:403K jiejie micro
jmsl0402agq.pdf
JMSL0402AGQ40V 1.6m N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.6 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 183 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)1.6 m RDS(ON)_Typ (@ VGS = 4.5V)2.2 m Halogen-free and RoHS-compliant AEC-Q101 Q
7.19. Size:523K jiejie micro
jmsl0401pgq.pdf
40V, 355A, 1.1m N-channel Power SGT MOSFETJMSL0401PGQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON)Parameters Value Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.6 V 100% Vds Tested ID(@VGS=10V) 355 ARDS(ON)_Typ(@VGS=10V 0.6 m Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=4.5V 1.1 m AEC-Q101 QualifiedApplications
7.21. Size:355K jiejie micro

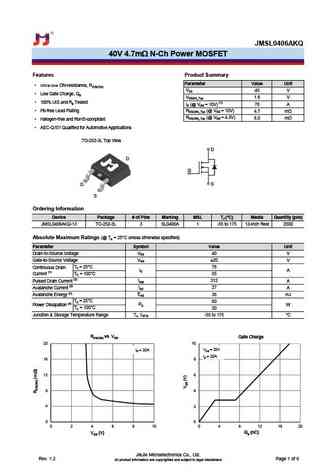

jmsl0406akq.pdf
JMSL0406AKQ40V 4.7m N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultralow ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.6 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 78 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)4.7 m RDS(ON)_Typ (@ VGS = 4.5V)6.0 m Halogen-free and RoHS-compliant AEC-Q101
7.22. Size:413K jiejie micro
jmsl0402akq.pdf
JMSL0402AKQ40V 1.9m N-Ch Power MOSFETFeaturesProduct SummaryParameter Typ. Unit Ultra-low RDS(ON) VDS40 V Low Gate Charge VGS(th)1.5 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 211 A RDS(ON) (@ VGS = 10V)1.9 Pb-free Lead Plating m RDS(ON) (@ VGS = 4.5V)2.6 m Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automot
7.24. Size:560K jiejie micro
jmsl0401agq.pdf
JMSL0401AGQ40V 1.3mW N-Ch Power MOSFETFeatures Product SummaryParameter Value Unit Ultra-low ON-resistance, RDS(ON) VDS40 V Low Gate Charge, Qg VGS(th)_Typ1.6 V 100% UIS and Rg Tested ID (@ VGS = 10V) (1) 198 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)1.3 mW RDS(ON)_Typ (@ VGS = 4.5V)1.7 mW Halogen-free and RoHS-compliant AEC-Q101 Qualifi
7.25. Size:1204K jiejie micro
jmsl0401pg.pdf
40V, 297A, 1.2m N-channel Power SGT MOSFETJMSL0401PGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 297 ARDS(ON)_Typ(@VGS=10V 0.8 mWRDS(ON)_Typ(@VGS=4.5V 1.2 mWApplications Load Switch PWM Application Pow
7.26. Size:1190K jiejie micro
jmsl0406pk.pdf
40V, 97A, 5.6m N-channel Power SGT MOSFETJMSL0406PKProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.7 V Halogen-free; RoHS-compliantID(@VGS=10V) 97 ARDS(ON)_Typ(@VGS=10V 4.1 mWRDS(ON)_Typ(@VGS=4.5V 5.6 mWApplications Load Switch PWM Application Power
7.27. Size:1191K jiejie micro
jmsl0402mgq.pdf
40V, 222A, 2.5m N-channel Power SGT MOSFETJMSL0402MGQProduct SummaryFeatures Ultra-low ON-resistance, RDS(ON)ParametersValue Unit Low Gate ChargeVDSS 40 V 100% UIS TestedVGS(th)_Typ 1.9 V 100% Vds TestedID(@VGS=10V) 222 A Halogen-free; RoHS-compliantRDS(ON)_Typ(@VGS=10V 1.8 mW AEC-Q101 Qualified RDS(ON)_Typ(@VGS=4.5V 2.5 mWApplications
7.28. Size:1235K jiejie micro
jmsl040spg.pdf
40V, 330A, 1.0m N-channel Power SGT MOSFETJMSL040SPGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParameters Value Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.5 V Halogen-free; RoHS-compliantID(@VGS=10V) 330 ARDS(ON)_Typ(@VGS=10V 0.7 mWRDS(ON)_Typ(@VGS=4.5V 1.0 mWApplications Load Switch PWM Application Pow
7.29. Size:1205K jiejie micro
jmsl0406pg.pdf
40V, 103A, 5.3m N-channel Power SGT MOSFETJMSL0406PGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.8 V Halogen-free; RoHS-compliantID(@VGS=10V) 103 ARDS(ON)_Typ(@VGS=10V 3.7 mWApplications RDS(ON)_Typ(@VGS=4.5V 5.3 mW Load Switch PWM Application Pow
7.31. Size:1179K jiejie micro
jmsl0406pgd.pdf
40V, 50A, 5.4m Dual N-channel Power SGT MOSFETJMSL0406PGDProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 50 ARDS(ON)_Typ(@VGS=10V 4.9 mWApplications RDS(ON)_Typ(@VGS=4.5V 5.4 mW Load Switch PWM Application
7.32. Size:1234K jiejie micro

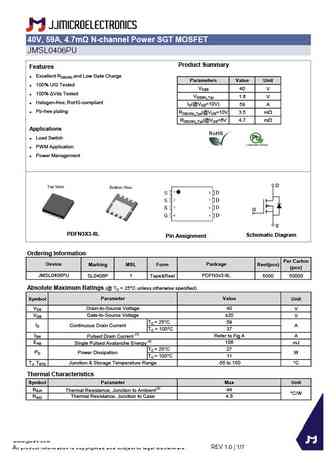

jmsl0406pu.pdf
40V, 59A, 4.7m N-channel Power SGT MOSFETJMSL0406PUProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 59 A Pb-free platingRDS(ON)_Typ(@VGS=10V 3.5 mWRDS(ON)_Typ(@VGS=6V 4.7 mWApplications Load Switch PWM Ap
7.36. Size:1228K jiejie micro
jmsl0403pu.pdf
40V, 85A, 2.8m N-channel Power SGT MOSFETJMSL0403PUProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.7 V Halogen-free; RoHS-compliantID(@VGS=10V) 85 ARDS(ON)_Typ(@VGS=10V 1.9 mWApplications RDS(ON)_Typ(@VGS=4.5V 2.8 mW Load Switch PWM Application Power
7.39. Size:1261K jiejie micro
jmsl0402mtl.pdf
40V, 367A, 1.04m N-channel Power SGT MOSFETJMSL0402MTLProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 367 ARDS(ON)_Typ(@VGS=10V 0.97 mWApplications RDS(ON)_Typ(@VGS=4.5V 1.04 mW Load Switch PWM Application
7.40. Size:1260K jiejie micro
jmsl0402ptl.pdf
40V, 310A, 1.0m N-channel SGT MOSFETJMSL0402PTLProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.6 V Halogen-free; RoHS-compliantID(@VGS=10V) 310 ARDS(ON)_Typ(@VGS=10V 0.9 mWApplications RDS(ON)_Typ(@VGS=4.5V 1.0 mW Load Switch PWM Application Power Ma
7.41. Size:1256K jiejie micro
jmsl040smtl.pdf
40V, 486A, 0.6m N-channel Power SGT MOSFETJMSL040SMTLProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.5 V Halogen-free; RoHS-compliantID(@VGS=10V) 486 ARDS(ON)_Typ(@VGS=10V 0.6 mWApplications Load Switch PWM Application Power ManagementPowerJE10x1
7.42. Size:1191K jiejie micro
jmsl0403pg.pdf
40V, 130A, 4.1m N-channel Power SGT MOSFETJMSL0403PGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.9 V Halogen-free; RoHS-compliantID(@VGS=10V) 130 ARDS(ON)_Typ(@VGS=10V 3.0 mWApplications RDS(ON)_Typ(@VGS=4.5V 4.1 mW Load Switch PWM Application Pow
7.43. Size:1190K jiejie micro
jmsl0402pg.pdf
40V, 233A, 1.5m N-channel SGT MOSFETJMSL0402PGProduct SummaryFeatures Excellent RDS(ON) and Low Gate ChargeParametersValue Unit 100% UIS TestedVDSS 40 V 100% Vds TestedVGS(th)_Typ 1.4 V Halogen-free; RoHS-compliantID(@VGS=10V) 233 ARDS(ON)_Typ(@VGS=10V 1.3 mWApplications RDS(ON)_Typ(@VGS=4.5V 1.5 mW Load Switch PWM Application Power Man
