AP50N06Y - аналоги и даташиты транзистора



AP50N06Y - Даташиты. Аналоги. Основные параметры


   Наименование производителя: AP50N06Y
   Тип транзистора: MOSFET
   Полярность: N
   Pd ⓘ - Максимальная рассеиваемая мощность: 45 W
   |Vds|ⓘ - Предельно допустимое напряжение сток-исток: 60 V
   |Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 20 V
   |Id| ⓘ - Максимально допустимый постоянный ток стока: 50 A
   Tj ⓘ - Максимальная температура канала: 150 °C
   tr ⓘ - Время нарастания: 50 ns
   Cossⓘ - Выходная емкость: 145 pf
   Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.02 Ohm
   Тип корпуса: TO251

 Аналог (замена) для AP50N06Y



AP50N06Y Datasheet (PDF)

 ..1. Size:1600K  cn apm
 ap50n06y.pdf pdf_icon

AP50N06Y

AP50N06Y 60V N-Channel Enhancement Mode MOSFET Description The AP50N06Y uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V =60V I =50A DS D R

 7.1. Size:2029K  allpower

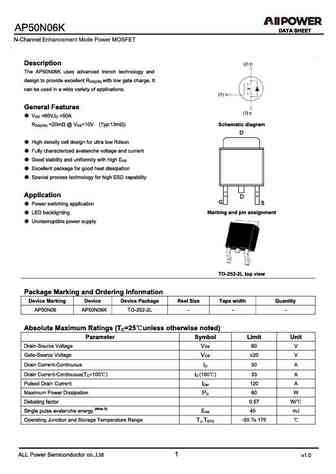

 ap50n06k.pdf pdf_icon

AP50N06Y

 7.2. Size:2440K  cn apm
 ap50n06nf.pdf pdf_icon

AP50N06Y

AP50N06NF 60V N-Channel Enhancement Mode MOSFET Description The AP50N06NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS D R

 7.3. Size:824K  cn apm
 ap50n06p ap50n06t.pdf pdf_icon

AP50N06Y

AP50N06PIT 60V N-Channel Enhancement Mode MOSFET Description The AP50N06P/T uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =50 A DS D R
