AP80P01NF - аналоги и даташиты транзистора



AP80P01NF - Даташиты. Аналоги. Основные параметры


   Наименование производителя: AP80P01NF
   Тип транзистора: MOSFET
   Полярность: P
   Pd ⓘ - Максимальная рассеиваемая мощность: 41.67 W
   |Vds|ⓘ - Предельно допустимое напряжение сток-исток: 12 V
   |Vgs|ⓘ - Предельно допустимое напряжение затвор-исток: 12 V
   |Id| ⓘ - Максимально допустимый постоянный ток стока: 80 A
   Tj ⓘ - Максимальная температура канала: 150 °C
   tr ⓘ - Время нарастания: 20.6 ns
   Cossⓘ - Выходная емкость: 769 pf
   Rds ⓘ - Сопротивление сток-исток открытого транзистора: 0.0045 Ohm
   Тип корпуса: PDFN5X6-8L

 Аналог (замена) для AP80P01NF



AP80P01NF Datasheet (PDF)

 ..1. Size:3546K  cn apm
 ap80p01nf.pdf pdf_icon

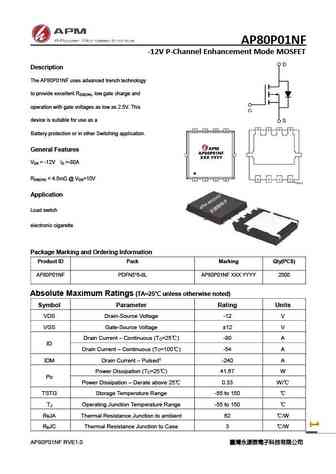

AP80P01NF

AP80P01NF -12V P-Channel Enhancement Mode MOSFET Description The AP80P01NF uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -12V I =-80A DS D R

 8.1. Size:508K  allpower
 ap80p04k.pdf pdf_icon

AP80P01NF

 8.2. Size:1641K  cn apm
 ap80p06d.pdf pdf_icon

AP80P01NF

AP80P06D -60V P-Channel Enhancement Mode MOSFET Description The AP80P06D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 6V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -60V I =-80A DS D R

 8.3. Size:1788K  cn apm
 ap80p04d.pdf pdf_icon

AP80P01NF

AP80P04D -40V P-Channel Enhancement Mode MOSFET Description The AP80P04D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -40V I =-80 A DS D R
