KSD363B/W TV Horizontal Deflection Output Collector-Base Voltage : VCBO=300V Collector Current : IC=6A Collector Dissipation : PC=40W(TC=25C)TO-22011.Base 2.Collector 3.EmitterNPN Epitaxial Silicon TransistorAbsolute Maximum Ratings TC=25C unless otherwise notedSymbol Parameter Value Units VCBO Collector-Base Voltage 300 V VCEO Collector-Emitter Voltage 120

Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur

INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor KSD363 DESCRIPTION Collector-Base Breakdown Voltage- : V(BR)CBO= 300V(Min) Collector Current- IC= 6A Collector Power Dissipation- : PC= 40W@ TC= 25 APPLICATIONS Designed for B/W TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25) SYMBOL PARAMETER VALUE

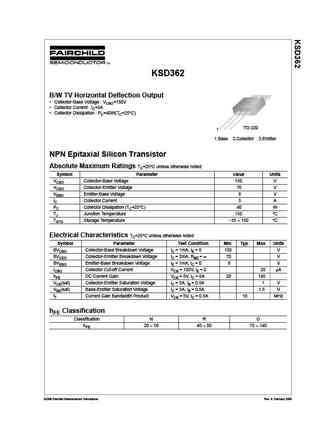

KSD362B/W TV Horizontal Deflection Output Collector-Base Voltage : VCBO=150V Collector Current : IC=5A Collector Dissipation : PC=40W(TC=25C)TO-22011.Base 2.Collector 3.EmitterNPN Epitaxial Silicon TransistorAbsolute Maximum Ratings TC=25C unless otherwise notedSymbol Parameter Value Units VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 70 V

INCHANGE Semiconductor isc Product Specification isc Silicon NPN Power Transistor KSD362 DESCRIPTION Collector-Base Breakdown Voltage- : V(BR)CBO= 150V(Min) Collector Current- IC= 5A Collector Power Dissipation- : PC= 40W@ TC= 25 APPLICATIONS Designed for B/W TV horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25) SYMBOL PARAMETER VALUE
