Биполярный транзистор B624 - описание производителя. Основные параметры. Даташиты.
Наименование производителя: B624
Тип материала: Si
Полярность: PNP
Максимальная рассеиваемая мощность (Pc): 0.225 W
Макcимально допустимое напряжение коллектор-база (Ucb): 30 V
Макcимально допустимое напряжение коллектор-эмиттер (Uce): 25 V
Макcимально допустимое напряжение эмиттер-база (Ueb): 5 V
Макcимальный постоянный ток коллектора (Ic): 0.7 A
Предельная температура PN-перехода (Tj): 150 °C
Граничная частота коэффициента передачи тока (ft): 160 MHz
Ёмкость коллекторного перехода (Cc): 17 pf
Статический коэффициент передачи тока (hfe): 110
Корпус транзистора: SOT23
B624 Datasheet (PDF)
2sb624.pdf

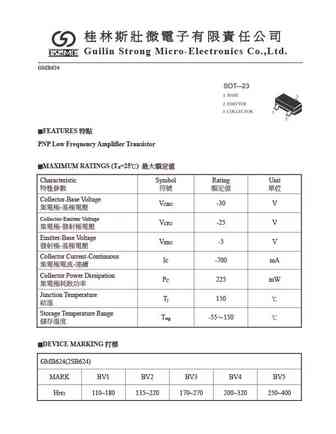

2SB624 -0.7A , -30V PNP Silicon Plastic Encapsulated Transistor Elektronische Bauelemente RoHS Compliant Product A suffix of -C specifies halogen & lead-free SOT-23 FEATURES High DC Current Gain. hFE200 (Typ.) (VCE= -1V, IC= -100mA) A Complimentary to 2SD596 L33Top View C BMARKING 11 2Product-Rank 2SB624-BV1 2SB624-BV2 2SB624-BV3 2K ERan
2sb624.pdf
JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD SOT-23 Plastic-Encapsulate Transistors SOT-23 2SB624 TRANSISTOR (PNP)FEATURES1.BASE High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA)2.EMITTER3.COLLECTOR Complimentary to 2SD596.MAXIMUM RATINGS (Ta=25 unless otherwise noted) Symbol Parameter Value UnitVCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Volt
2sb624.pdf
2SB624 TRANSISTOR(PNP) SOT-23 1.BASE 2.EMITTER FEATURES 3.COLLECTOR High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA) Complimentary to 2SD596. MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value UnitsVCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -25 V VEBO Emitter-Base Voltage -5 V IC Collector Current -Continuous -700
2sb624 sot-23-3l.pdf
2SB624 SOT-23-3L Transistor(PNP)1.BASE SOT-23-3L2.EMITTER 2.923.COLLECTOR 0.351.17Features2.80 1.60High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA) Complimentary to 2SD596. 0.151.90Dimensions in inches and (millimeters)MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value UnitsVCBO Collector-Base Voltage -30 V VCEO Collector-Emi
2sb624 sot-23.pdf
2SB624 SOT-23 Transistor(PNP)SOT-231.BASE 2.EMITTER 3.COLLECTOR Features High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA) Complimentary to 2SD596. MAXIMUM RATINGS (TA=25 unless otherwise noted) Symbol Parameter Value Units Dimensions in inches and (millimeters)VCBO Collector-Base Voltage -30 V VCEO Collector-Emitter Voltage -25 V VEBO Emitter-Base Voltage -5
2sb624.pdf
SMD Type TransistorsPNP Transistors2SB624SOT-23Unit: mm+0.12.9-0.1+0.10.4 -0.1 Features3 High DC current gain. hFE:200 TYP.(VCE=-1V,IC=-100mA) Complimentary to 2SD596.1 2+0.050.95+0.1-0.1 0.1 -0.011.9+0.1-0.11.Base2.Emitter3.collector Absolute Maximum Ratings Ta = 25Parameter Symbol Rating Unit Collector - Base Voltage VCBO -30
2sb624.pdf
2SB624 TRANSI STOR (PNP)2SB624Equivalent Circuit: SOT-231.BASE2.EMITTER3.COLLECTORFEATURES: Complimentary to 2SD596 High DC Current gainMAXIMUM RATINGS (Ta=25 unless otherwise noted)Parameter Symbol Value UnitCollector-Base Voltage VCBO -30 VCollector-Emitter Voltage VCEO -25 VEmitter-Base Voltage VEBO -5 VCollector Current IC -700 mACollector Power Diss
2sb624.pdf
INCHANGE Semiconductorisc Silicon PNP Transistor 2SB624DESCRIPTIONSOT-23 plastic-encapsulate transistorsHigh DC current gain:h =200(TYP)FE@V = -1V, I = -100mACE CComplementary to 2SD596Minimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for audio frequency general purpose amplifierABSOLUTE MAXIMUM RATINGS(T =2
