All Transistors. BDC05 Datasheet



BDC05 Datasheet, Equivalent, Cross Reference Search

Type Designator: BDC05

Material of Transistor: Si

Polarity: NPN

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 300 V

Maximum Collector Current |Ic max|: 0.05 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 60 MHz

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

Package: TO92

BDC05 Transistor Equivalent Substitute - Cross-Reference Search



BDC05 Datasheet (PDF)

1.1. bdc05rev.pdf Size:141K _motorola

BDC05
BDC05

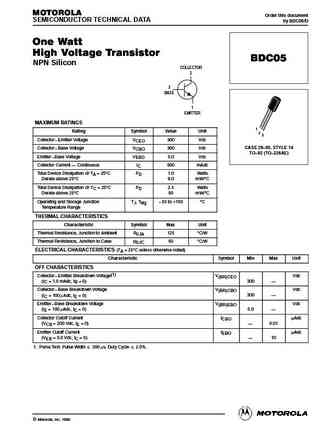

MOTOROLA Order this document SEMICONDUCTOR TECHNICAL DATA by BDC05/D One Watt High Voltage Transistor BDC05 NPN Silicon COLLECTOR 2 3 BASE 1 EMITTER MAXIMUM RATINGS 1 Rating Symbol Value Unit 2 3 CollectorEmitter Voltage VCEO 300 Vdc CASE 2905, STYLE 14 CollectorBase Voltage VCBO 300 Vdc TO92 (TO226AE) EmitterBase Voltage VEBO 5.0 Vdc Collector Current Continuous IC
