All Transistors. BU123 Datasheet



BU123 Datasheet and Replacement


   Type Designator: BU123
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 50 W
   Maximum Collector-Base Voltage |Vcb|: 120 V
   Maximum Collector-Emitter Voltage |Vce|: 120 V
   Maximum Emitter-Base Voltage |Veb|: 8 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 200 °C
   Transition Frequency (ft): 10 MHz
   Forward Current Transfer Ratio (hFE), MIN: 25
   Noise Figure, dB: -
   Package: TO3


 BU123 Substitution

   - BJT ⓘ Cross-Reference Search



BU123 Datasheet (PDF)

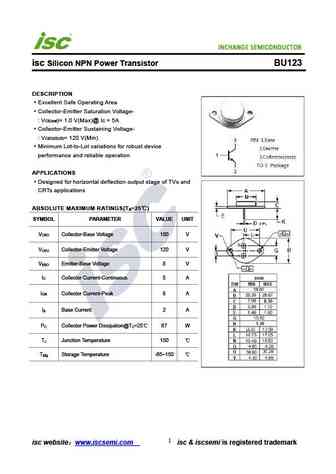

 ..1. Size:201K  inchange semiconductor
 bu123.pdf pdf_icon

BU123

isc Silicon NPN Power Transistor BU123DESCRIPTIONExcellent Safe Operating AreaCollector-Emitter Saturation Voltage-: V )= 1.0 V(Max)@ I = 5ACE(sat CCollector-Emitter Sustaining Voltage-: V = 120 V(Min)CEO(SUS)Minimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for horizontal deflection output stage of TVs andC
