MJE9780 Datasheet. Specs and Replacement

Type Designator: MJE9780  📄📄

Material of Transistor: Si

Polarity: PNP

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 40 W

Maximum Collector-Base Voltage |Vcb|: 200 V

Maximum Collector-Emitter Voltage |Vce|: 150 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 3 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 5 MHz

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

Package: TO220

  📄📄 Copy

 MJE9780 Substitution

- BJT ⓘ Cross-Reference Search



MJE9780 datasheet

 ..1. Size:212K  inchange semiconductor

 mje9780.pdf pdf_icon

MJE9780

isc Silicon PNP Power Transistor MJE9780 DESCRIPTION Standard TO 220 Package Gain Range of 50 200 at 500 mAdc/10 volts Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed forvertical output of 14 inch to 17 inch televisions and CRT monitors, as well as other applications requiring a 150 volt PNP transistor. ABSOLUT... See More ⇒

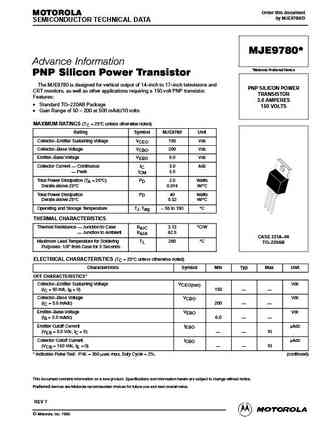

 0.1. Size:75K  motorola

 mje9780r.pdf pdf_icon

MJE9780

Order this document MOTOROLA by MJE9780/D SEMICONDUCTOR TECHNICAL DATA MJE9780* Advance Information *Motorola Preferred Device PNP Silicon Power Transistor The MJE9780 is designed for vertical output of 14 inch to 17 inch televisions and PNP SILICON POWER CRT monitors, as well as other applications requiring a 150 volt PNP transistor. TRANSISTOR Features 3.0 AMPERES Stand... See More ⇒
