MPSU10 Datasheet. Specs and Replacement

Type Designator: MPSU10  📄📄

Material of Transistor: Si

Polarity: NPN

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 300 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 0.5 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 45 MHz

Forward Current Transfer Ratio (hFE), MIN: 25

Noise Figure, dB: -

Package: X17

  📄📄 Copy

 MPSU10 Substitution

- BJT ⓘ Cross-Reference Search

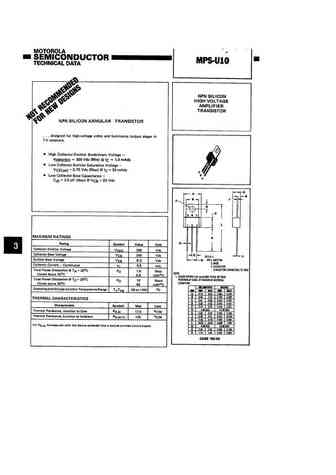

MPSU10 datasheet

 ..1. Size:262K  motorola

 mpsu10.pdf pdf_icon

MPSU10

... See More ⇒
