All Transistors. STN951 Datasheet



STN951 Datasheet and Replacement


   Type Designator: STN951
   SMD Transistor Code: N951
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 1.6 W
   Maximum Collector-Base Voltage |Vcb|: 60 V
   Maximum Collector-Emitter Voltage |Vce|: 60 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 130 MHz
   Collector Capacitance (Cc): 60 pF
   Forward Current Transfer Ratio (hFE), MIN: 150
   Noise Figure, dB: -
   Package: SOT223


 STN951 Substitution

   - BJT ⓘ Cross-Reference Search



STN951 Datasheet (PDF)

 ..1. Size:96K  st
 stn951.pdf pdf_icon

STN951

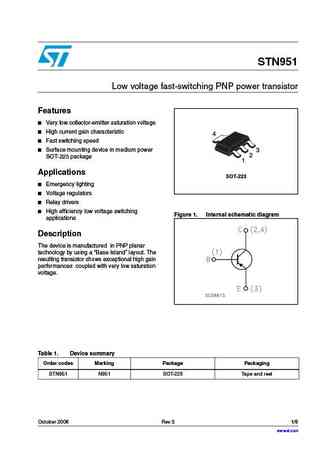

STN951Low voltage fast-switching PNP power transistorFeatures Very low collector-emitter saturation voltage High current gain characteristic4 Fast switching speed Surface mounting device in medium power 32SOT-223 package1ApplicationsSOT-223 Emergency lighting Voltage regulators Relay drivers High efficiency low voltage switching Figure 1

Datasheet: STN817A , STN83003 , STN851 , STN851A , STN878 , STN888 , STN9260 , STN93003 , 2N3904 , STP03D200 , STPSA42 , STPSA92 , STS05DTP03 , STSA1805 , STSA851 , STT13005 , STT818B .
