NZT651 Datasheet, Equivalent, Cross Reference Search
Type Designator: NZT651
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1.2 W
Maximum Collector-Base Voltage |Vcb|: 80 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 4 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 75 MHz
Forward Current Transfer Ratio (hFE), MIN: 75
Noise Figure, dB: -
Package: SOT-223
NZT651 Transistor Equivalent Substitute - Cross-Reference Search
NZT651 Datasheet (PDF)
nzt651.pdf

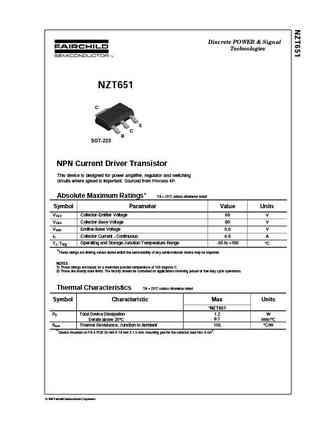

NZT651CECBSOT-223NPN Current Driver TransistorThis device is designed for power amplifier, regulator and switchingcircuits where speed is important. Sourced from Process 4P.Absolute Maximum Ratings* TA = 25C unless otherwise notedSymbol Parameter Value UnitsVCEO Collector-Emitter Voltage 60 VV Collector-Base Voltage 80 VCBOVEBO Emitter-Base Voltage 5.0 VIC Collec
nzt651.pdf

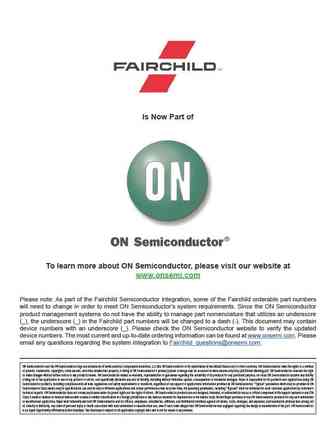

Is Now Part ofTo learn more about ON Semiconductor, please visit our website at www.onsemi.comPlease note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductors system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur
