BTB818AG6 Datasheet and Replacement


   Type Designator: BTB818AG6
   SMD Transistor Code: AF
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 1.2 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 7 V
   Maximum Collector Current |Ic max|: 3 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 150 MHz
   Collector Capacitance (Cc): 12 pF
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TSOP6


 BTB818AG6 Substitution

   - BJT ⓘ Cross-Reference Search



BTB818AG6 Datasheet (PDF)

 ..1. Size:332K  cystek
 btb818ag6.pdf pdf_icon

BTB818AG6

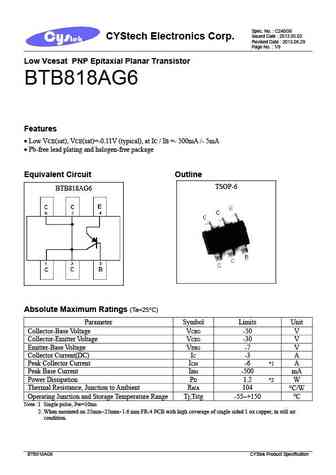

Spec. No. : C240G6 Issued Date : 2013.05.03 CYStech Electronics Corp.Revised Date : 2013.08.29 Page No. : 1/9 Low Vcesat PNP Epitaxial Planar Transistor BTB818AG6 Features Low VCE(sat), VCE(sat)=-0.11V (typical), at IC / IB =- 500mA /- 5mA Pb-free lead plating and halogen-free package Equivalent Circuit Outline TSOP-6 BTB818AG6Absolute Maximum Ratings (Ta=25C

 8.1. Size:261K  cystek
 btb818n6.pdf pdf_icon

BTB818AG6

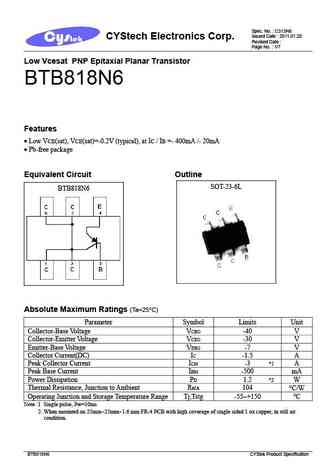

Spec. No. : C313N6 Issued Date : 2011.01.20 CYStech Electronics Corp.Revised Date : Page No. : 1/7 Low Vcesat PNP Epitaxial Planar Transistor BTB818N6 Features Low VCE(sat), VCE(sat)=-0.2V (typical), at IC / IB =- 400mA /- 20mA Pb-free package Equivalent Circuit Outline SOT-23-6L BTB818N6Absolute Maximum Ratings (Ta=25C) Parameter Symbol Limits UnitCollec
