All Transistors. A327A Datasheet



A327A Datasheet and Replacement


   Type Designator: A327A
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 0.63 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 45 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.5 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 100 MHz
   Forward Current Transfer Ratio (hFE), MIN: 100
   Noise Figure, dB: -
   Package: TO92


 A327A Substitution

   - BJT ⓘ Cross-Reference Search

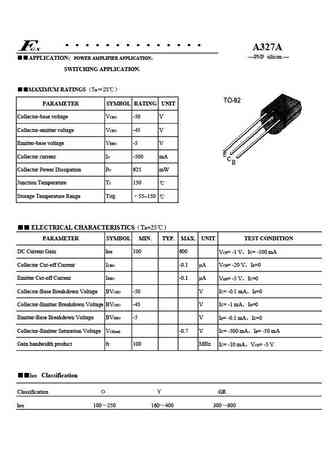

A327A Datasheet (PDF)

 ..1. Size:229K  fgx
 a327a.pdf pdf_icon

A327A

A327A PNP silicon APPLICATIONPOWER AMPLIFIER APPLICATIONSWITCHING APPLICATION.MAXIMUM RATINGSTa25PARAMETER SYMBOL RATING UNITCollector-base voltage VCBO -50 VCollector-emitter voltage VCEO -45 VEmitter-base voltage VEBO -5 VCollector current IC -500 mACollector Power Dissipation PC 625 mWJunction Temperature TJ 15
