H548 Datasheet and Replacement


   Type Designator: H548
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 30 V
   Maximum Collector-Emitter Voltage |Vce|: 30 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 300(TYP) MHz
   Collector Capacitance (Cc): 2.5 pF
   Forward Current Transfer Ratio (hFE), MIN: 110
   Noise Figure, dB: -
   Package: TO92


 H548 Substitution

   - BJT ⓘ Cross-Reference Search

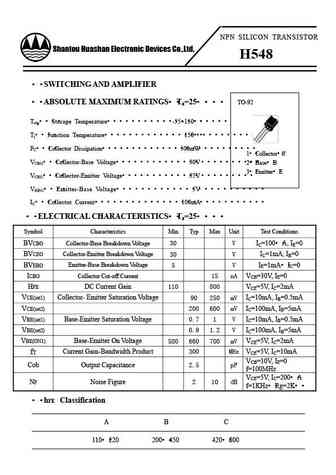

H548 Datasheet (PDF)

 ..1. Size:65K  shantou-huashan
 h548.pdf pdf_icon

H548

N P N S I L I C O N T R A N S I S T O R Shantou Huashan Electronic Devices Co.,Ltd. H548 SWITCHING AND AMPLIFIER ABSOLUTE MAXIMUM RATINGSTa=25 TO-92 TstgStorage Temperature -55~150TjJunction Temperature150PCCollector Dissipation500mW
