BCX13 PDF and Equivalents Search

BCX13 Specs and Replacement

Type Designator: BCX13

SMD Transistor Code: BCX13

Material of Transistor: Si

Polarity: PNP

Absolute Maximum Ratings

Maximum Collector Power Dissipation (Pc): 0.625 W

Maximum Collector-Base Voltage |Vcb|: 125 V

Maximum Collector-Emitter Voltage |Vce|: 125 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.8 A

Max. Operating Junction Temperature (Tj): 150 °C

Electrical Characteristics

Transition Frequency (ft): 120 MHz

Collector Capacitance (Cc): 12 pF

Forward Current Transfer Ratio (hFE), MIN: 25

Noise Figure, dB: -

Package: TO92

- BJT ⓘ Cross-Reference Search

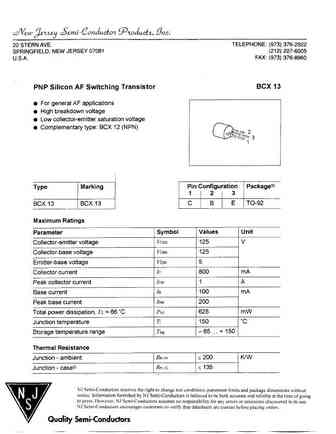

BCX13 datasheet
