All Transistors. FHC70 Datasheet



FHC70 Datasheet and Replacement


   Type Designator: FHC70
   Material of Transistor: Si
   Polarity: PNP
   Maximum Collector Power Dissipation (Pc): 70 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Collector Current |Ic max|: 10 A
   Max. Operating Junction Temperature (Tj): 175 °C
   Forward Current Transfer Ratio (hFE), MIN: 500
   Noise Figure, dB: -
   Package: TO-3


 FHC70 Substitution

   - BJT ⓘ Cross-Reference Search

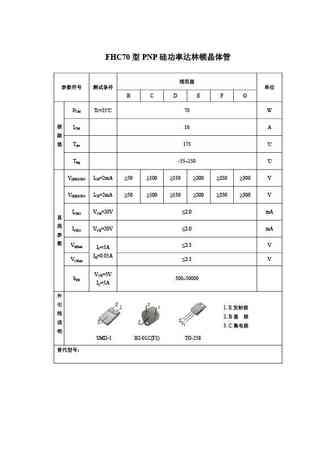

FHC70 Datasheet (PDF)

 ..1. Size:135K  china
 fhc70.pdf pdf_icon

FHC70

FHC70 PNP B C D E F G PCM Tc=25 70 W ICM 10 A Tjm 175 Tstg -55~150 V(BR)CBO ICB=2mA 50 100 150 200 250 300 V V(BR)CEO ICE=2mA 50 100 150 200 250 300 V ICBO VCB=20V 2.0 mA ICEO VCE=20V 2.0 mA VBEsat 2.5 V
