All Transistors. DCX100NS Datasheet



DCX100NS Datasheet and Replacement


   Type Designator: DCX100NS
   SMD Transistor Code: C01
   Material of Transistor: Si
   Polarity: Pre-Biased-NPN*PNP
   Built in Bias Resistor R1 = 10 kOhm
   Built in Bias Resistor R2 = 10 kOhm
   Typical Resistor Ratio R1/R2 = 1
   Maximum Collector Power Dissipation (Pc): 0.15 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 6 V
   Maximum Collector Current |Ic max|: 0.05 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 250 MHz
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -
   Package: SOT563


 DCX100NS Substitution

   - BJT ⓘ Cross-Reference Search



DCX100NS Datasheet (PDF)

 ..1. Size:324K  diodes
 dcx100ns.pdf pdf_icon

DCX100NS

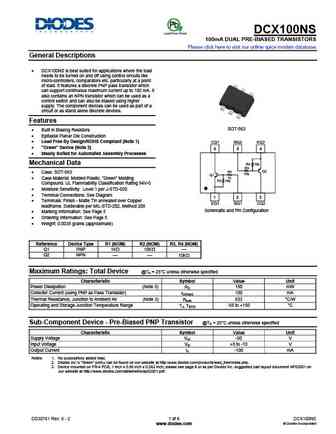

DCX100NS 100mA DUAL PRE-BIASED TRANSISTORS Please click here to visit our online spice models database.General Descriptions DCX100NS is best suited for applications where the load needs to be turned on and off using control circuits like micro-controllers, comparators etc. particularly at a point of load. It features a discrete PNP pass transistor which can support continuou
