AT41586 Datasheet and Replacement


   Type Designator: AT41586
   SMD Transistor Code: 415
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.5 W
   Maximum Collector-Base Voltage |Vcb|: 20 V
   Maximum Collector-Emitter Voltage |Vce|: 12 V
   Maximum Emitter-Base Voltage |Veb|: 1.5 V
   Maximum Collector Current |Ic max|: 0.06 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 8000 MHz
   Forward Current Transfer Ratio (hFE), MIN: 30
   Noise Figure, dB: -
   Package: 86PP


 AT41586 Substitution

   - BJT ⓘ Cross-Reference Search

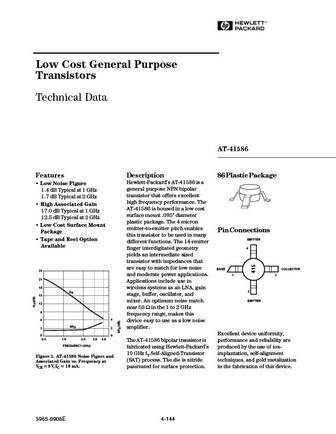

AT41586 Datasheet (PDF)

 ..1. Size:76K  1
 at41586.pdf pdf_icon

AT41586

Low Cost General PurposeTransistorsTechnical DataAT-41586Features Description 86 Plastic PackageHewlett-Packards AT-41586 is a Low Noise Figuregeneral purpose NPN bipolar1.4 dB Typical at 1 GHztransistor that offers excellent1.7 dB Typical at 2 GHzhigh frequency performance. The High Associated GainAT-41586 is housed in a low cost17.0 dB Typical at 1 GHzsu
