LSCR523EBFS8 Datasheet and Replacement


   Type Designator: LSCR523EBFS8
   SMD Transistor Code: NB
   Material of Transistor: Si
   Polarity: NPN
   Maximum Collector Power Dissipation (Pc): 0.15 W
   Maximum Collector-Base Voltage |Vcb|: 50 V
   Maximum Collector-Emitter Voltage |Vce|: 50 V
   Maximum Emitter-Base Voltage |Veb|: 5 V
   Maximum Collector Current |Ic max|: 0.1 A
   Max. Operating Junction Temperature (Tj): 150 °C
   Transition Frequency (ft): 350(typ) MHz
   Collector Capacitance (Cc): 1.6 pF
   Forward Current Transfer Ratio (hFE), MIN: 120
   Noise Figure, dB: -
   Package: EMT3F


 LSCR523EBFS8 Substitution

   - BJT ⓘ Cross-Reference Search

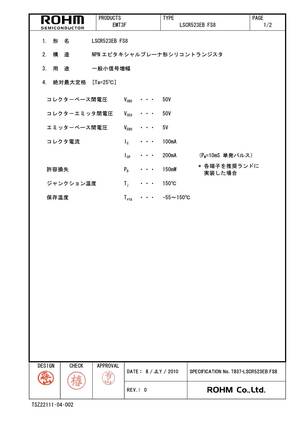

LSCR523EBFS8 Datasheet (PDF)

 ..1. Size:193K  rohm
 lscr523ebfs8.pdf pdf_icon

LSCR523EBFS8

PRODUCTS TYPE PAGE EMT3F LSCR523EB FS8 1/2 1. LSCR523EB FS8 2. NPN 3. 4. [Ta=25] VCBO 50V VCEO 50V VEBO 5V
