SIS698DN MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: SIS698DN
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 3.2 W|Vds|ⓘ - Voltaje máximo drenador - fuente: 100 V
|Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
|Id|ⓘ - Corriente continua de drenaje: 2.8 A
Tjⓘ - Temperatura máxima de unión: 150 °C
CARACTERÍSTICAS ELÉCTRICAS
trⓘ - Tiempo de subida: 11 nS
Cossⓘ - Capacitancia de salida: 35 pF
Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.195 Ohm
Paquete / Cubierta: 1212-8
Búsqueda de reemplazo de SIS698DN MOSFET

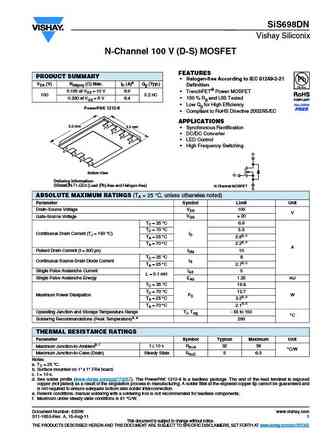

SIS698DN Datasheet (PDF)
sis698dn.pdf

SiS698DNVishay SiliconixN-Channel 100 V (D-S) MOSFETFEATURESPRODUCT SUMMARY Halogen-free According to IEC 61249-2-21VDS (V) RDS(on) () Max. ID (A)a Qg (Typ.)Definition0.195 at VGS = 10 V 6.9 TrenchFET Power MOSFET100 5.2 nC0.230 at VGS = 6 V 6.4 100 % Rg and UIS Tested Low Qg for High EfficiencyPowerPAK 1212-8 Compliant to RoHS Directive 200
