G1007 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: G1007
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 28 W
Voltaje máximo drenador - fuente |Vds|: 100 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 7 A
Temperatura máxima de unión (Tj): 175 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 2.6 V
Carga de la puerta (Qg): 11 nC
Tiempo de subida (tr): 3 nS
Conductancia de drenaje-sustrato (Cd): 120 pF
Resistencia entre drenaje y fuente RDS(on): 0.085 Ohm
Paquete / Cubierta: SOP-8
Búsqueda de reemplazo de MOSFET G1007
G1007 Datasheet (PDF)
g1007.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)

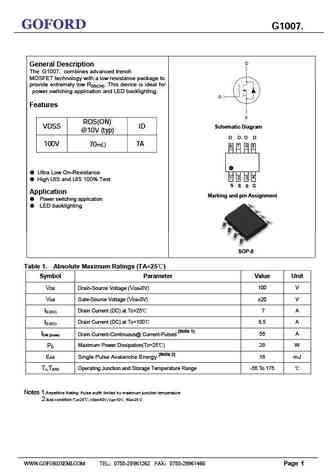

GOFORDG1007.General Description The G1007. combines advanced trench MOSFET technology with a low resistance package to provide extremely low RDS(ON). This device is ideal for power switching application and LED backlighting. Features RDS(ON) VDSS ID Schematic Diagram@10V (typ) 100V 7A 70m Ultra Low On-Resistance High UIS and UIS 100% Test Application
