HSL0004 MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: HSL0004
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 1.5 W
Voltaje máximo drenador - fuente |Vds|: 100 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 3 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 2.5 V
Carga de la puerta (Qg): 26.2 nC
Tiempo de subida (tr): 7.6 nS
Conductancia de drenaje-sustrato (Cd): 60 pF
Resistencia entre drenaje y fuente RDS(on): 0.112 Ohm
Paquete / Cubierta: SOT223
Búsqueda de reemplazo de MOSFET HSL0004

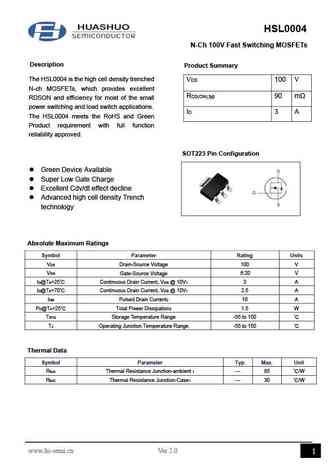

HSL0004 Datasheet (PDF)
hsl0004.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
HSL0004 N-Ch 100V Fast Switching MOSFETs Description Product Summary The HSL0004 is the high cell density trenched VDS 100 V N-ch MOSFETs, which provides excellent RDS(ON),typ 90 m RDSON and efficiency for most of the small power switching and load switch applications. ID 3 A The HSL0004 meets the RoHS and Green Product requirement with full function reliability appr
