SE6050B MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: SE6050B
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 80 W
Voltaje máximo drenador - fuente |Vds|: 60 V
Voltaje máximo fuente - puerta |Vgs|: 20 V
Corriente continua de drenaje |Id|: 50 A
Temperatura máxima de unión (Tj): 175 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 3 V
Carga de la puerta (Qg): 30 nC
Tiempo de subida (tr): 5 nS
Conductancia de drenaje-sustrato (Cd): 104 pF
Resistencia entre drenaje y fuente RDS(on): 0.015 Ohm
Paquete / Cubierta: TO252
Búsqueda de reemplazo de MOSFET SE6050B

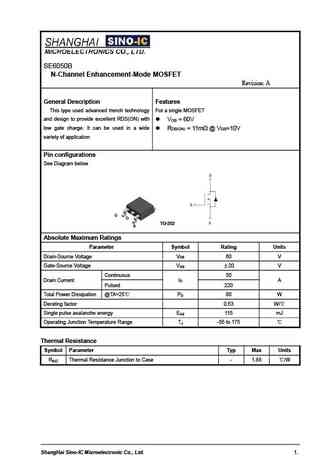

SE6050B Datasheet (PDF)
se6050b.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
SE6050BN-Channel Enhancement-Mode MOSFETRevision: AGeneral Description FeaturesThis type used advanced trench technology For a single MOSFETand design to provide excellent RDS(ON) with V =60VDSlow gate charge. It can be used in a wide R =11m @V =10VDS(ON) GSvariety of applicationPin configurationsSee Diagram belowGDTO-252SAbsolute Maximum RatingsPa
