YJS2022A MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: YJS2022A
Código: Q2022
Tipo de FET: MOSFET
Polaridad de transistor: P
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 3 W
Voltaje máximo drenador - fuente |Vds|: 20 V
Voltaje máximo fuente - puerta |Vgs|: 10 V
Corriente continua de drenaje |Id|: 13 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 1 V
Carga de la puerta (Qg): 72.8 nC
Tiempo de subida (tr): 33 nS
Conductancia de drenaje-sustrato (Cd): 330 pF
Resistencia entre drenaje y fuente RDS(on): 0.017 Ohm
Paquete / Cubierta: SOP8
Búsqueda de reemplazo de MOSFET YJS2022A

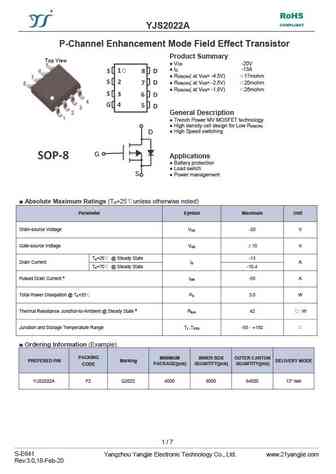

YJS2022A Datasheet (PDF)
yjs2022a.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
RoHS COMPLIANT YJS2022A P-Channel Enhancement Mode Field Effect Transistor Product Summary V -20V DS I -13A D R ( at V = -4.5V) 17mohm DS(ON) GS R ( at V = -2.5V) 20mohm DS(ON) GS R ( at V = -1.8V) 26mohm DS(ON) GSGeneral Description Trench Power MV MOSFET technology High density cell design for Low RDS(ON) High Speed
