JFHM9N150E MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: JFHM9N150E
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Máxima disipación de potencia (Pd): 277 W
Voltaje máximo drenador - fuente |Vds|: 1500 V
Voltaje máximo fuente - puerta |Vgs|: 30 V
Corriente continua de drenaje |Id|: 9 A
Temperatura máxima de unión (Tj): 150 °C
CARACTERÍSTICAS ELÉCTRICAS
Tensión umbral entre puerta y fuente |Vgs(th)|: 4.5 V
Carga de la puerta (Qg): 90 nC
Tiempo de subida (tr): 191 nS
Conductancia de drenaje-sustrato (Cd): 309 pF
Resistencia entre drenaje y fuente RDS(on): 3.5 Ohm
Paquete / Cubierta: TO247
Búsqueda de reemplazo de MOSFET JFHM9N150E

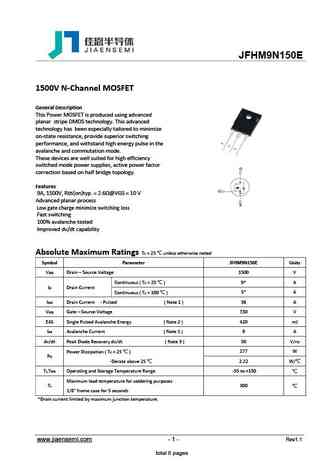

JFHM9N150E Datasheet (PDF)
jfhm9n150e.pdf
![](https://alltransistors.com/ad/pdf_icon.gif)
JFHM9N150E 1500V N-Channel MOSFET General Description This Power MOSFET is produced using advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices are well suited for high efficiency
