FXN0304C Todos los transistores



FXN0304C MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: FXN0304C
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 138 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 40 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
   |Id|ⓘ - Corriente continua de drenaje: 102 A
   Tjⓘ - Temperatura máxima de unión: 175 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 24 nS
   Cossⓘ - Capacitancia de salida: 940 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.0045 Ohm
   Paquete / Cubierta: TO220


 Búsqueda de reemplazo de FXN0304C MOSFET

   - Selección ⓘ de transistores por parámetros



FXN0304C Datasheet (PDF)

 ..1. Size:485K  cn fx-semi
 fxn0304c.pdf pdf_icon

FXN0304C

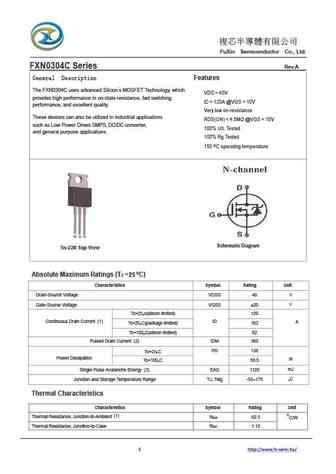

FuXin Semiconductor Co., Ltd.FXN0304C Series Rev.AGeneral Description FeaturesThe FXN0304C uses advanced Silicon s MOSFET Technology, whichVDS = 40Vprovides high performance in on-state resistance, fast switchingID = 120A @VGS = 10Vperformance, and excellent quality.Very low on-resistanceThese devices can also be utilized in industrial applica

 8.1. Size:362K  cn fx-semi
 fxn0303d.pdf pdf_icon

FXN0304C

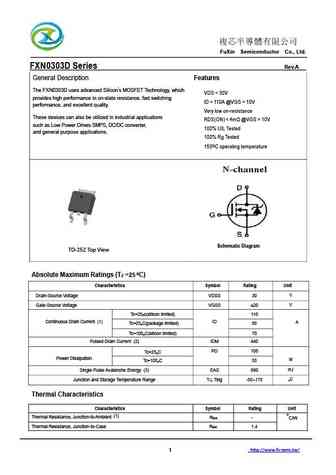

FuXin Semiconductor Co., Ltd. FXN0303D Series Rev.A General Description Features The FXN0303D uses advanced Silicon s MOSFET Technology, which VDS = 30V provides high performance in on-state resistance, fast switching ID = 110A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industri

 8.2. Size:903K  cn fx-semi
 fxn0305c.pdf pdf_icon

FXN0304C

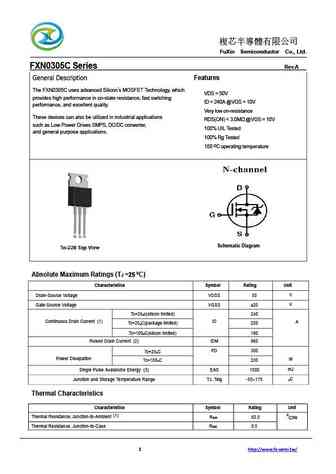

FuXin Semiconductor Co., Ltd. FXN0305C Series Rev.A General Description Features The FXN0305C uses advanced Silicon s MOSFET Technology, which VDS = 50V provides high performance in on-state resistance, fast switching ID = 240A @VGS = 10V performance, and excellent quality. Very low on-resistance These devices can also be utilized in industri

Otros transistores... FXN0507C , FXN0305C , FXN0404C , FXN0405C , FXN0406C , FXN0205C , FXN0206C , FXN0303D , IRF830 , FXN9N45F , FXN9N50F , FXN9N90F , FXN9N90P , FXN15S50F , FXN18N20C , FXN18N50F , FXN20N50F .
