JMSH0606AKQ MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características
Número de Parte: JMSH0606AKQ
Código: SH0606AQ
Tipo de FET: MOSFET
Polaridad de transistor: N
ESPECIFICACIONES MÁXIMAS
Pdⓘ - Máxima disipación de potencia: 100 W|Vds|ⓘ - Voltaje máximo drenador - fuente: 60 V
|Vgs|ⓘ - Voltaje máximo fuente - puerta: 20 V
|Id|ⓘ - Corriente continua de drenaje: 95 A
Tjⓘ - Temperatura máxima de unión: 175 °C
CARACTERÍSTICAS ELÉCTRICAS
|Vgs(th)|ⓘ - Tensión umbral entre puerta y fuente: 3.4 VQgⓘ - Carga de la puerta: 34 nC
trⓘ - Tiempo de subida: 27 nS
Cossⓘ - Capacitancia de salida: 940 pF
Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.0055 Ohm
Paquete / Cubierta: TO252
Búsqueda de reemplazo de JMSH0606AKQ MOSFET
JMSH0606AKQ Datasheet (PDF)

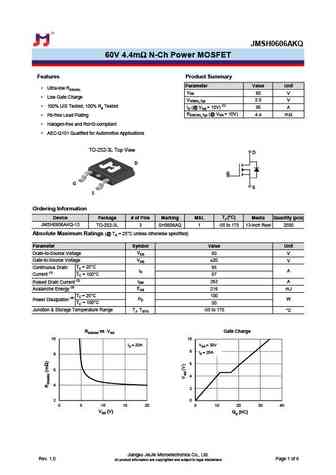

jmsh0606akq.pdf

JMSH0606AKQ60V 4.4m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS60 V Low Gate Charge VGS(th)_Typ2.8 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 95 A RDS(ON)_Typ (@ VGS = 10V)4.4 m Pb-free Lead Plating Halogen-free and RoHS-compliant AEC-Q101 Qualified for Automotive ApplicationsTO-252-3L T

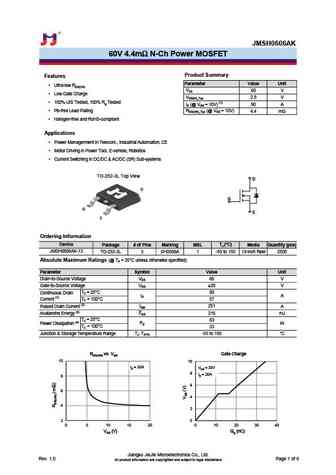

jmsh0606ak.pdf

JMSH0606AK60V 4.4m N-Ch Power MOSFETProduct SummaryFeaturesParameter Value Unit Ultra-low RDS(ON) VDS60 V Low Gate Charge VGS(th)_Typ2.8 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 90 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 4.4 m Halogen-free and RoHS-compliantApplications Power Managerment in Telecom., Industrial Autom

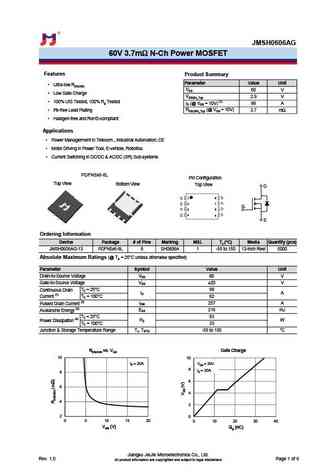

jmsh0606ag.pdf

JMSH0606AG60V 3.7m N-Ch Power MOSFETFeaturesProduct SummaryParameter Value Unit Ultra-low RDS(ON) VDS60 V Low Gate Charge VGS(th)_Typ2.9 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 98 A RDS(ON)_Typ (@ VGS = 10V) Pb-free Lead Plating 3.7 m Halogen-free and RoHS-compliantApplications Power Managerment in Telecom., Industrial Autom

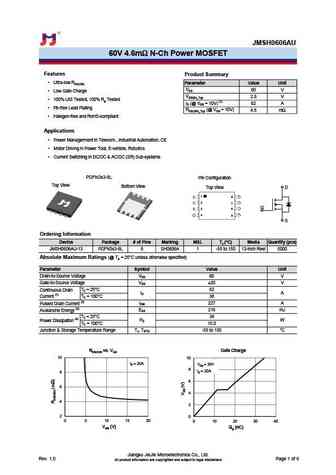

jmsh0606au.pdf

JMSH0606AU60V 4.6m N-Ch Power MOSFETFeaturesProduct Summary Ultra-low RDS(ON) Parameter Value Unit VDS60 V Low Gate Charge VGS(th)_Typ2.8 V 100% UIS Tested, 100% Rg Tested ID (@ VGS = 10V) (1) 62 A Pb-free Lead Plating RDS(ON)_Typ (@ VGS = 10V)4.6 m Halogen-free and RoHS-compliantApplications Power Managerment in Telecom., Industrial Autom
