AP2320MI Todos los transistores



AP2320MI MOSFET. Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: AP2320MI
   Tipo de FET: MOSFET
   Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 1.2 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 20 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 12 V
   |Id|ⓘ - Corriente continua de drenaje: 8 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 9.2 nS
   Cossⓘ - Capacitancia de salida: 162 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.012 Ohm
   Paquete / Cubierta: SOT23


 Búsqueda de reemplazo de AP2320MI MOSFET

   - Selección ⓘ de transistores por parámetros

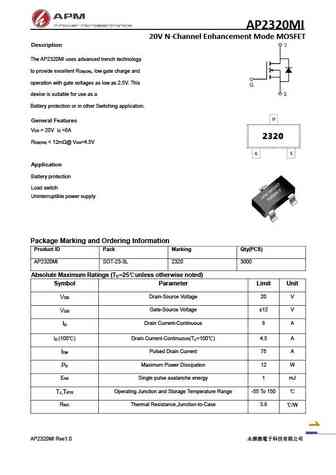

AP2320MI Datasheet (PDF)

 ..1. Size:1420K  cn apm
 ap2320mi.pdf pdf_icon

AP2320MI

AP2320MI 20V N-Channel Enhancement Mode MOSFET Description The AP2320MI uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 20V I =8A DS DR

 8.1. Size:146K  ape
 ap2320gn.pdf pdf_icon

AP2320MI

AP2320GNHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 100VD Small Package Outline RDS(ON) 5 Surface Mount Device ID 0.25AS RoHS Compliant & Halogen-FreeSOT-23SGDDescriptionAP2320 series are from Advanced Power innovated design andsilicon process technology to achieve the lowe

 8.2. Size:55K  ape
 ap2320n-hf.pdf pdf_icon

AP2320MI

AP2320N-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 100VD Small Package Outline RDS(ON) 5 Surface Mount Device ID 0.25AS RoHS Compliant & Halogen-FreeSOT-23SGDDescriptionAP2320 series are from Advanced Power innovated design andsilicon process technology to achieve the lo

 8.3. Size:54K  ape
 ap2320gn-hf.pdf pdf_icon

AP2320MI

AP2320GN-HFHalogen-Free ProductAdvanced Power N-CHANNEL ENHANCEMENT MODEElectronics Corp. POWER MOSFET Simple Drive Requirement BVDSS 100VD Small Package Outline RDS(ON) 5 Surface Mount Device ID 0.25AS RoHS Compliant & Halogen-FreeSOT-23GDDescriptionAdvanced Power MOSFETs utilized advanced processingtechniques to achieve the lowest possible on-resist
