AP15P10D Todos los transistores

 ..1. Size:1464K  cn apm
 ap15p10d.pdf

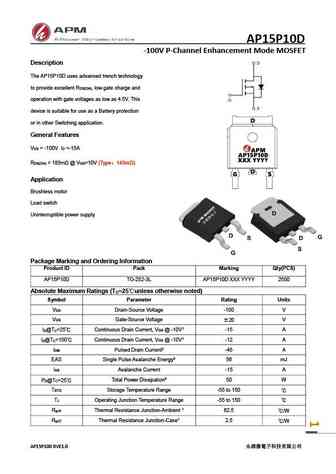

AP15P10D -100V P-Channel Enhancement Mode MOSFET Description The AP15P10D uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -100V I =-15A DS D R

 7.1. Size:100K  ape
 ap15p10gh-hf ap15p10gj-hf.pdf

AP15P10GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Low Gate Charge BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description G D The TO-252 package is widely preferred for all commercial-industrial S TO-252(H) surface mount app

 7.2. Size:236K  ape
 ap15p10gh.pdf

AP15P10GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description AP15P10 series are from Advanced Power innovated design and silicon G D S TO-252(H) process technology

 7.3. Size:99K  ape
 ap15p10gp ap15p10gs.pdf

AP15P10GS/P RoHS-compliant Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Low Gate Charge BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID -15A G RoHS Compliant S Description Advanced Power MOSFETs from APEC provide the G designer with the best combination of fast switching, D S TO-263(S) r

 7.4. Size:205K  ape
 ap15p10gj.pdf

AP15P10GH/J-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description AP15P10 series are from Advanced Power innovated design and silicon G D S TO-252(H) process technology

 7.5. Size:218K  ape
 ap15p10gi.pdf

AP15P10GI Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET Low Gate Charge D BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID3 -8.3A G RoHS Compliant & Halogen-Free S Description AP15P10 series are from Advanced Power innovated design and silicon process technology to achieve the lowest

 7.6. Size:98K  ape
 ap15p10gp-hf ap15p10gs-hf.pdf

AP15P10GS/P-HF Halogen-Free Product Advanced Power P-CHANNEL ENHANCEMENT MODE Electronics Corp. POWER MOSFET D Low Gate Charge BVDSS -100V Simple Drive Requirement RDS(ON) 230m Fast Switching Characteristic ID -15A G RoHS Compliant & Halogen-Free S Description Advanced Power MOSFETs from APEC provide the G designer with the best combination of fast switching, D

 7.7. Size:907K  cn vbsemi
 ap15p10gh.pdf

 7.8. Size:832K  cn vbsemi
 ap15p10gj.pdf

AP15P10GJ www.VBsemi.tw P-Channel 100 V (D-S) MOSFET FEATURES PRODUCT SUMMARY Halogen-free According to IEC 61249-2-21 VDS (V) RDS(on) ( ) ID (A) Qg (Typ.) Definition 0.215 at VGS = - 10 V - 12 TrenchFET Power MOSFET - 100 11 0.234 at VGS = - 4.5 V - 10 100 % Rg and UIS Tested Compliant to RoHS Directive 2002/95/EC APPLICATIONS Power Switch DC/DC Conv
