   Número de Parte: AP16P02S
   Tipo de FET: MOSFET
   Polaridad de transistor: P

ESPECIFICACIONES MÁXIMAS

   Pdⓘ - Máxima disipación de potencia: 2.5 W
   |Vds|ⓘ - Voltaje máximo drenador - fuente: 20 V
   |Vgs|ⓘ - Voltaje máximo fuente - puerta: 12 V
   |Id|ⓘ - Corriente continua de drenaje: 16 A
   Tjⓘ - Temperatura máxima de unión: 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   trⓘ - Tiempo de subida: 31 nS
   Cossⓘ - Capacitancia de salida: 242 pF
   Rds(on)ⓘ - Resistencia estado encendido drenaje a fuente: 0.02 Ohm
   Paquete / Cubierta: SOP8


 Búsqueda de reemplazo de AP16P02S MOSFET

   - Selección ⓘ de transistores por parámetros



AP16P02S Datasheet (PDF)

 ..1. Size:1497K  cn apm

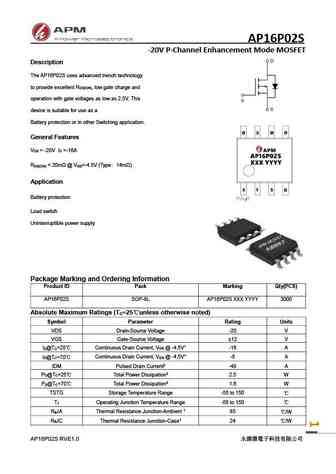

 ap16p02s.pdf pdf_icon

AP16P02S

AP16P02S -20V P-Channel Enhancement Mode MOSFET Description The AP16P02S uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -20V I =-16A DS DR

 8.1. Size:1331K  cn apm

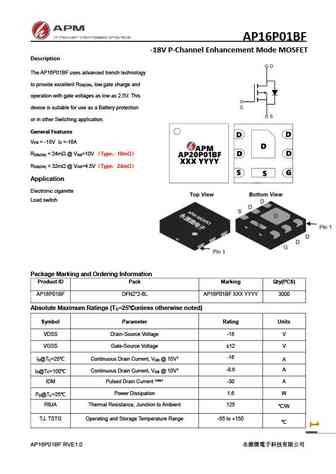

 ap16p01bf.pdf pdf_icon

AP16P02S

AP16P01BF -18V P-Channel Enhancement Mode MOSFET Description The AP16P01BF uses advanced trench technology to provide excellent R , low gate charge and DS(ON)operation with gate voltages as low as 2.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = -18V I =-16A DS DR
