AOL1718 Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características

Número de Parte: AOL1718  📄📄

Tipo de FET: MOSFET

Polaridad de transistor: N

ESPECIFICACIONES MÁXIMAS

Pdⓘ - Máxima disipación de potencia: 100 W

|Vds|ⓘ - Voltaje máximo drenador-fuente: 30 V

|Vgs|ⓘ - Voltaje máximo fuente-puerta: 20 V

|Id|ⓘ - Corriente continua de drenaje: 90 A

Tjⓘ - Temperatura máxima de unión: 175 °C

CARACTERÍSTICAS ELÉCTRICAS

trⓘ - Tiempo de subida: 10.7 nS

Cossⓘ - Capacitancia de salida: 693 pF

RDSonⓘ - Resistencia estado encendido drenaje a fuente: 0.003 Ohm

Encapsulados: ULTRASO8

  📄📄 Copiar

 Búsqueda de reemplazo de AOL1718 MOSFET

- Selecciónⓘ de transistores por parámetros

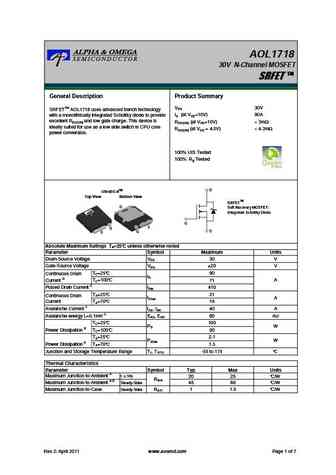

AOL1718 datasheet

 ..1. Size:257K  1
 aol1718.pdf pdf_icon

AOL1718

AOL1718 30V N-Channel MOSFET SRFET TM General Description Product Summary VDS 30V SRFETTM AOL1718 uses advanced trench technology ID (at VGS=10V) 90A with a monolithically integrated Schottky diode to provide excellent RDS(ON) and low gate charge. This device is RDS(ON) (at VGS=10V)

 8.1. Size:253K  aosemi
 aol1712.pdf pdf_icon

AOL1718

AOL1712 N-Channel Enhancement Mode Field Effect Transistor SRFET TM General Description Features TM VDS (V) = 30V SRFET AOL1712 uses advanced trench ID =65A (VGS = 10V) technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate RDS(ON)

 9.1. Size:266K  aosemi
 aol1704.pdf pdf_icon

AOL1718

AOL1704 N-Channel Enhancement Mode Field Effect Transistor SRFET TM General Description Features TM SRFET AOL1704 uses advanced trench VDS (V) = 30V technology with a monolithically integrated Schottky ID =50A (VGS = 10V) diode to provide excellent RDS(ON),and low gate charge. This device is suitable for use as a low side RDS(ON)

 9.2. Size:244K  aosemi
 aol1700.pdf pdf_icon

AOL1718

AOL1700 N-Channel Enhancement Mode Field Effect Transistor SRFET TM General Description Features TM VDS (V) = 30V SRFET AOL1700 uses advanced trench ID =85A (VGS = 10V) technology with a monolithically integrated Schottky diode to provide excellent RDS(ON),and low gate RDS(ON)
