MOTOROLA Order this document SEMICONDUCTOR TECHNICAL DATA by BC546/D Amplifier Transistors BC546, B NPN Silicon BC547, A, B, C BC548, A, B, C COLLECTOR 1 2 BASE 3 EMITTER 1 MAXIMUM RATINGS 2 3 BC BC BC 546 547 548 Rating Symbol Unit CASE 29 04, STYLE 17 TO 92 (TO 226AA) Collector Emitter Voltage VCEO 65 45 30 Vdc Collector Base Voltage VCBO 80 50 30 Vdc Emitt... See More ⇒

DISCRETE SEMICONDUCTORS DATA SHEET book, halfpage M3D186 BC546; BC547 NPN general purpose transistors 1999 Apr 15 Product specification Supersedes data of 1997 Mar 04 Philips Semiconductors Product specification NPN general purpose transistors BC546; BC547 FEATURES PINNING Low current (max. 100 mA) PIN DESCRIPTION Low voltage (max. 65 V). 1 emitter 2 base APPLICATIONS ... See More ⇒

BC847/BC547 series 45 V, 100 mA NPN general-purpose transistors Rev. 07 10 December 2008 Product data sheet 1. Product profile 1.1 General description NPN general-purpose transistors in small plastic packages. Table 1. Product overview Type number[1] Package PNP complement NXP JEITA JEDEC BC847 SOT23 - TO-236AB BC857 BC847A BC857A BC847B BC857B BC847B/DG - BC847C BC857C BC847W... See More ⇒

BC546/547/548/549/550 Switching and Applications High Voltage BC546, VCEO=65V Low Noise BC549, BC550 Complement to BC556 ... BC560 TO-92 1 1. Collector 2. Base 3. Emitter NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25 C unless otherwise noted Symbol Parameter Value Units VCBO Collector-Base Voltage BC546 80 V BC547/550 50 V BC548/549 30 V VCE... See More ⇒

Discrete POWER & Signal Technologies BC547 BC547A BC547B BC547C E TO-92 B C NPN General Purpose Amplifier This device is designed for use as general purpose amplifiers and switches requiring collector currents to 300 mA. Sourced from Process 10. See PN100A for characteristics. Absolute Maximum Ratings* TA = 25 C unless otherwise noted Symbol Parameter Value Units VCEO Collector-... See More ⇒

BC546A/B/C MCC Micro Commercial C omponents TM BC547A/B/C 20736 Marilla Street Chatsworth Micro Commercial Components CA 91311 Phone (818) 701-4933 BC548A/B/C Fax (818) 701-4939 Features NPN Silicon Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information) Amplifier Transistor Through Hole Package 150 C Junction Tempe... See More ⇒

Continental Device India Limited An ISO/TS 16949, ISO 9001 and ISO 14001 Certified Company BC546, A, B, C NPN SILICON PLANAR EPITAXIAL TRANSISTORS BC547, A. B, C BC548, A. B, C TO-92 Plastic Package For Lead Free Parts, Device Part # will be Prefixed with E B "T" C Amplifier Transistors ABSOLUTE MAXIMUM RATINGS (Ta=25 C) DESCRIPTION SYMBOL BC546 BC547 BC548 UNITS Collector Em... See More ⇒

JIANGSU CHANGJING ELECTRONICS TECHNOLOGY CO., LTD TO-92 Plastic-Encapsulate Transistors BC546 / BC547 / BC548 TRANSISTOR (NPN) TO-92 FEATURES High Voltage Complement to BC556,BC557,BC558 1. COLLECTOR 2. BASE 3. EMITTER BC546 BC547 BC548 Z XXX Z XXX Z XXX 1 1 1 Equivalent Circuit BC546,BC547,BC548=Device code Solid dot=Green molding compound device, i... See More ⇒

SEMICONDUCTOR BC546/7/8 TECHNICAL DATA EPITAXIAL PLANAR NPN TRANSISTOR GENERAL PURPOSE APPLICATION. SWITCHING APPLICATION . B C FEATURES High Voltage BC546 VCEO=65V. N DIM MILLIMETERS For Complementary With PNP Type BC556/557/558. A 4.70 MAX E K G B 4.80 MAX C 3.70 MAX D D 0.45 E 1.00 F 1.27 G 0.85 MAXIMUM RATING (Ta=25 ) H 0.45 _ H J 14.00 + 0.50 CHARACTERISTIC S... See More ⇒

BC546/BC547/BC548(NPN) TO-92 Bipolar Transistors TO-92 1. COLLECTOR 2. BASE 3. EMITTER Features High Voltage Complement to BC556,BC557,BC558 MAXIMUM RATINGS (TA=25 unless otherwise noted) Parameter Symbol Value Units Collector-Base Voltage BC546 80 BC547 50 VCBO V BC548 30 Collector-Emitter Voltage BC546 65 VCEO BC547 45 V BC548 30 Dimensions in i... See More ⇒

BC546/BC547/BC548(NPN) TO-92 Bipolar Transistors TO-92 1. COLLECTOR 2. BASE 3. EMITTER Features High Voltage Complement to BC556,BC557,BC558 MAXIMUM RATINGS (TA=25 unless otherwise noted) Parameter Symbol Value Units Collector-Base Voltage BC546 80 BC547 50 VCBO V BC548 30 Collector-Emitter Voltage BC546 65 VCEO BC547 45 V BC548 30 6 VEBO Emitter-Ba... See More ⇒

BC546, A/B BC547, A/B/C BC548, A/B/C NPN General Purpose Transistor COLLECTOR 1 TO-92 2 BASE 1 2 3 3 EMITTER Maximum Ratings ( T =25 C unless otherwise noted) A Rating Symbol BC546 BC547 BC548 Unit Collector-Emitter Voltage VECO 65 45 30 Vdc Collector-Base Voltage V 80 50 30 Vdc CBO Emitter-Base Voltage VEBO 6 6 6 Vdc Collector Current Continuous lC 100 mAdc THERMAL CHA... See More ⇒

BC547 Rev.E Mar.-2016 DATA SHEET / Descriptions TO-92(R) NPN Silicon NPN transistor in a TO-92(R) Plastic Package. / Features High Voltage, Low Noise. / Applications General purpose and switching application. / Equivalent Circuit ... See More ⇒

BC547B BC547C SMALL SIGNAL NPN TRANSISTORS Ordering Code Marking Package / Shipment BC547B BC547B TO-92 / Bulk BC547B-AP BC547B TO-92 / Ammopack BC547C BC547C TO-92 / Bulk BC547C-AP BC547C TO-92 / Ammopack SILICON EPITAXIAL PLANAR NPN TRANSISTORS TO-92 PACKAGE SUITABLE FOR THROUGH-HOLE PCB ASSEMBLY TO-92 TO-92 BC547B - THE PNP COMPLEMENTARY Bulk Ammopack TYPE IS BC557B AP... See More ⇒

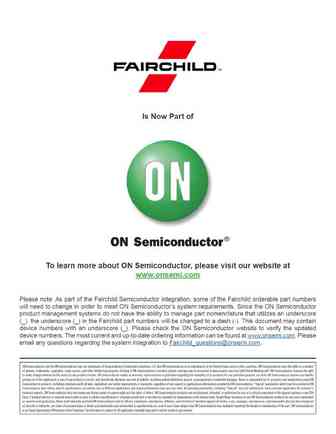

Is Now Part of To learn more about ON Semiconductor, please visit our website at www.onsemi.com Please note As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers will need to change in order to meet ON Semiconductor s system requirements. Since the ON Semiconductor product management systems do not have the ability to manage part nomenclatur... See More ⇒

BC546B, BC547A, B, C, BC548B, C Amplifier Transistors NPN Silicon Features http //onsemi.com Pb-Free Packages are Available* COLLECTOR 1 MAXIMUM RATINGS 2 BASE Rating Symbol Value Unit Collector - Emitter Voltage VCEO Vdc BC546 65 3 BC547 45 EMITTER BC548 30 Collector - Base Voltage VCBO Vdc BC546 80 BC547 50 BC548 30 TO-92 Emitter - Base Voltage VEBO 6.0 Vdc CASE 2... See More ⇒

SBC547 NPN Silicon Transistor Descriptions PIN Connection General purpose application C Switching application B Features High voltage VCEO=45V E Complementary pair with SBC557 TO-92 Ordering Information Type NO. Marking Package Code SBC547 SBC547 TO-92 Absolute maximum ratings (Ta=25 C) Characteristic Symbol Ratings Unit Collector-Base volt... See More ⇒

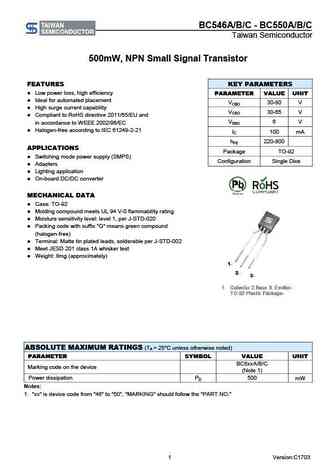

BC546A/B/C - BC550A/B/C Taiwan Semiconductor 500mW, NPN Small Signal Transistor FEATURES KEY PARAMETERS Low power loss, high efficiency PARAMETER VALUE UNIT Ideal for automated placement VCBO 30-80 V High surge current capability VCEO 30-65 V Compliant to RoHS directive 2011/65/EU and VEBO 6 V in accordance to WEEE 2002/96/EC Halogen-free accordi... See More ⇒

Spec. No. C204A3 Issued Date 2015.01.23 CYStech Electronics Corp. Revised Date Page No. 1 / 7 General Purpose NPN Epitaxial Planar Transistor BC547BA3 Description The BC547BA3 is designed for use in driver stage of AF amplifier and low speed switching. Complementary to BC557BA3. Pb-free package Symbol Outline BC547BA3 TO-92 B Base C Collector ... See More ⇒

... See More ⇒

... See More ⇒

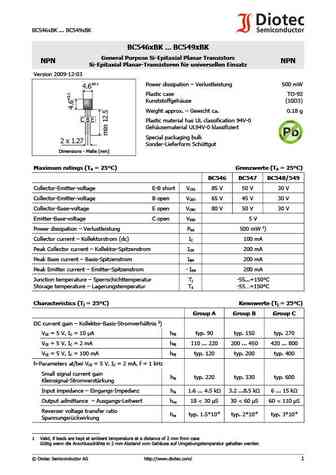

BC546xBK ... BC549xBK BC546xBK ... BC549xBK General Purpose Si-Epitaxial Planar Transistors NPN NPN Si-Epitaxial Planar-Transistoren f r universellen Einsatz Version 2009-12-03 0.1 Power dissipation Verlustleistung 500 mW 4.6 Plastic case TO-92 Kunststoffgeh use (10D3) Weight approx. Gewicht ca. 0.18 g C B E Plastic material has UL classification 94V-0 Geh usematerial... See More ⇒
