Número de Parte: 3CD9
Material: Si
Polaridad de transistor: PNP
ESPECIFICACIONES MÁXIMAS
Disipación total del dispositivo (Pc): 150
W
Tensión colector-base (Vcb): 50
V
Tensión colector-emisor (Vce): 50
V
Tensión emisor-base (Veb): 4
V
Corriente del colector DC máxima (Ic): 15
A
Temperatura operativa máxima (Tj): 175
°C
CARACTERÍSTICAS ELÉCTRICAS
Ganancia de corriente contínua (hfe): 15
Paquete / Cubierta:
TO3
Búsqueda de reemplazo de transistor bipolar 3CD9
3CD9
Datasheet (PDF)
..1. Size:124K china

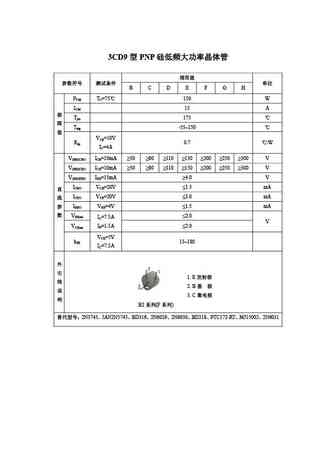

3cd9.pdf
3CD9 PNP B C D E F G H PCM TC=75 150 W ICM 15 A Tjm 175 Tstg -55~150 VCE=10V Rth 0.7 /W IC=4A V(BR)CBO ICB=10mA 50 80 110 150 200 250 300 V V(BR)CEO ICE=10mA 50 80 110 150 200 250 300 V V(BR)EBO IEB=15mA 4.0 V ICBO VCB=
0.1. Size:219K blue-rocket-elect
3cd910.pdf
3CD910 PNP /SILICON PNP TRANSISTOR : Purpose: Audio frequency amplifier, low voltage regulator. :, h FEFeatures: Low saturation voltage, excellent h linearity and high h . FE FE/Absolute maximum ratings(Ta=25) Symbol R
0.2. Size:208K lzg
3cd940.pdf
2SB940(3CD940) PNP /SILICON PNP TRANSISTOR :,/Purpose: Power amplifier, TV vertical deflection output. :/Features: High V , large P . CEO C/Absolute maximum ratings(Ta=25) Symbol Rating Unit V -200 V CBO V -150 V C
0.3. Size:182K inchange semiconductor

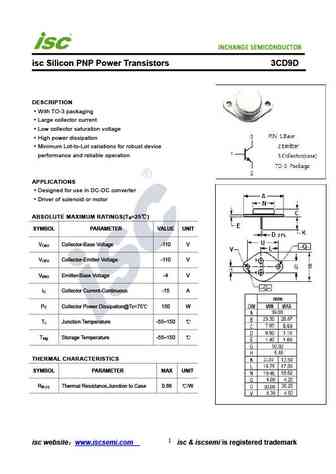

3cd9d.pdf
INCHANGE Semiconductorisc Silicon PNP Power Transistors 3CD9DDESCRIPTIONWith TO-3 packagingLarge collector currentLow collector saturation voltageHigh power dissipationMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in DC-DC converterDriver of solenoid or motorABSOLUTE MAXIMUM RATINGS(T =25)
0.4. Size:182K inchange semiconductor
3cd9b.pdf
INCHANGE Semiconductorisc Silicon PNP Power Transistors 3CD9BDESCRIPTIONWith TO-3 packagingLarge collector currentLow collector saturation voltageHigh power dissipationMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in DC-DC converterDriver of solenoid or motorABSOLUTE MAXIMUM RATINGS(T =25)
0.5. Size:182K inchange semiconductor
3cd9a.pdf
INCHANGE Semiconductorisc Silicon PNP Power Transistors 3CD9ADESCRIPTIONWith TO-3 packagingLarge collector currentLow collector saturation voltageHigh power dissipationMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in DC-DC converterDriver of solenoid or motorABSOLUTE MAXIMUM RATINGS(T =25)
0.6. Size:182K inchange semiconductor
3cd9c.pdf
INCHANGE Semiconductorisc Silicon PNP Power Transistors 3CD9CDESCRIPTIONWith TO-3 packagingLarge collector currentLow collector saturation voltageHigh power dissipationMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for use in DC-DC converterDriver of solenoid or motorABSOLUTE MAXIMUM RATINGS(T =25)
0.7. Size:203K inchange semiconductor

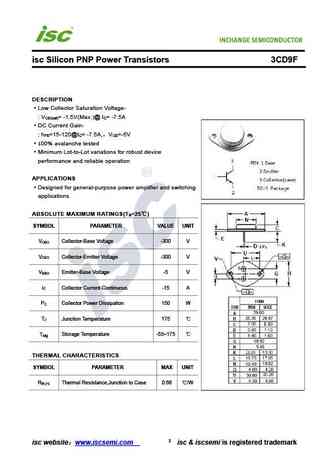

3cd9f.pdf
isc Silicon PNP Power Transistors 3CD9FDESCRIPTIONLow Collector Saturation Voltage-: V = -1.5V(Max.)@ I = -7.5ACE(sat) CDC Current Gain-: h =15-120@I = -7.5A,V =-5VFE C CE100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationAPPLICATIONSDesigned for general-purpose power amplifier and switchingapplicationsA
