PMD3001D Todos los transistores



PMD3001D . Datasheet. Equivalente. Reemplazo. Hoja de especificaciones. Principales características


   Número de Parte: PMD3001D
   Código: 9F
   Material: Si
   Polaridad de transistor: NPN*PNP

ESPECIFICACIONES MÁXIMAS


   Disipación total del dispositivo (Pc): 0.58 W
   Tensión colector-base (Vcb): 40 V
   Tensión colector-emisor (Vce): 40 V
   Corriente del colector DC máxima (Ic): 1 A
   Temperatura operativa máxima (Tj): 150 °C

CARACTERÍSTICAS ELÉCTRICAS


   Ganancia de corriente contínua (hfe): 300
   Paquete / Cubierta: SOT457


 Búsqueda de reemplazo de PMD3001D

   - Selección ⓘ de transistores por parámetros



PMD3001D Datasheet (PDF)

 ..1. Size:173K  nxp
 pmd3001d.pdf pdf_icon

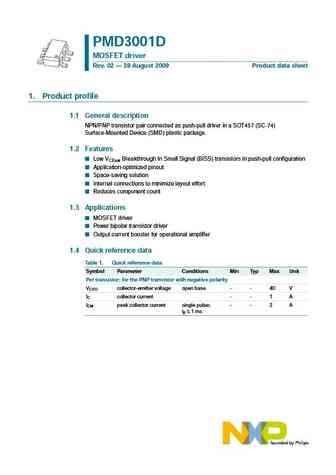

PMD3001D

PMD3001DMOSFET driverRev. 02 28 August 2009 Product data sheet1. Product profile1.1 General descriptionNPN/PNP transistor pair connected as push-pull driver in a SOT457 (SC-74)Surface-Mounted Device (SMD) plastic package.1.2 Features Low VCEsat Breakthrough In Small Signal (BISS) transistors in push-pull configuration Application-optimized pinout Space-saving solution
