AP6941GMT-HF Specs and Replacement

Type Designator: AP6941GMT-HF

Type of Transistor: MOSFET

Type of Control Channel: NP-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 3.57 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 20 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 8 V

|Id| ⓘ - Maximum Drain Current: 12(8.8) A

Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

tr ⓘ - Rise Time: 10(20) nS

Cossⓘ - Output Capacitance: 125(180) pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.016(0.032) Ohm

Package: PMPAK5X6

AP6941GMT-HF substitution

- MOSFET ⓘ Cross-Reference Search



AP6941GMT-HF datasheet

 ..1. Size:87K  ape
 ap6941gmt-hf.pdf pdf_icon

AP6941GMT-HF

AP6941GMT-HF Halogen-Free Product Advanced Power N AND P-CHANNEL ENHANCEMENT Electronics Corp. MODE POWER MOSFET D1 D1 D2 D2 Simple Drive Requirement N-CH BVDSS 20V Good Thermal Performance RDS(ON) 16m Fast Switching Performance ID 12A RoHS Compliant & Halogen-Free P-CH BVDSS -20V RDS(ON) 32m S1 G1 S2 G2 Description ID -8.8A AP6941 series are from Advanced Power ... See More ⇒

 9.1. Size:128K  ape
 ap6942gmt-hf.pdf pdf_icon

AP6941GMT-HF

AP6942GMT-HF Halogen-Free Product Advanced Power N AND P-CHANNEL ENHANCEMENT Electronics Corp. MODE POWER MOSFET D1 D1 D2 D2 Simple Drive Requirement N-CH BVDSS 30V Good Thermal Performance RDS(ON) 9m Fast Switching Performance ID 15.8A RoHS Compliant & Halogen-Free P-CH BVDSS -20V RDS(ON) 23m S1 G1 S2 G2 Description ID -10.1A AP6942 series are from Advanced Powe... See More ⇒

 9.2. Size:161K  ape
 ap6942gmt.pdf pdf_icon

AP6941GMT-HF

AP6942GMT-HF Halogen-Free Product Advanced Power N AND P-CHANNEL ENHANCEMENT Electronics Corp. MODE POWER MOSFET D1 D1 D2 D2 Simple Drive Requirement N-CH BVDSS 30V Good Thermal Performance RDS(ON) 9m Fast Switching Performance ID 15.8A RoHS Compliant & Halogen-Free P-CH BVDSS -20V RDS(ON) 23m S1 G1 S2 G... See More ⇒

 9.3. Size:1596K  cn apm
 ap6946a.pdf pdf_icon

AP6941GMT-HF

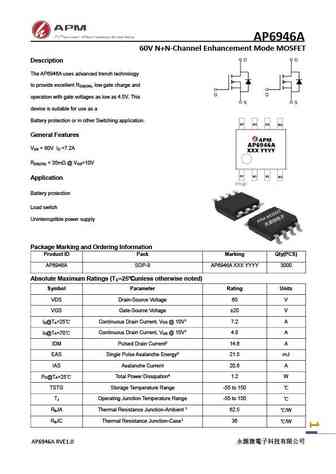

AP6946A 60V N+N-Channel Enhancement Mode MOSFET Description The AP6946A uses advanced trench technology to provide excellent R , low gate charge and DS(ON) operation with gate voltages as low as 4.5V. This device is suitable for use as a Battery protection or in other Switching application. General Features V = 60V I =7.2A DS D R ... See More ⇒

SHOW MORE

Detailed specifications: AP6920GMT-HF, AP6921GMT-HF, AP6922GMT-HF, AP6923GMT-HF, AP6924GEY, AP6925GY, AP6928GMT-HF, AP6930GMT-HF, 50N06, AP6942GMT-HF, AP6950GYT-HF, AP6970GN2-HF, AP6980GN2-HF, AP6982GM, AP6982GN2-HF, AP6983GN2-HF, AP70L02GH
