AOI7N60 MOSFET PDF: N-Ch, 600V, 7A. Datasheet. Full specification with pinout and replacement list

AOI7N60 Specs and Replacement

   Type Designator: AOI7N60
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel

Absolute Maximum Ratings

   Pd ⓘ - Maximum Power Dissipation: 178 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 600 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 7 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C

Electrical Characteristics

   tr ⓘ - Rise Time: 37 nS
   Cossⓘ - Output Capacitance: 88 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.3 Ohm
   Package: TO-251A

AOI7N60 substitution

- MOSFET ⓘ Cross-Reference Search

AOI7N60 datasheet

..1. Size:387K aosemi
aoi7n60.pdf pdf_icon

AOD7N60/AOI7N60 600V,7A N-Channel MOSFET General Description Product Summary The AOD7N60 & AOI7N60 have been fabricated using an advanced high voltage MOSFET process that is designed VDS 700V@150 to deliver high levels of performance and robustness in ID (at VGS=10V) 7A popular AC-DC applications. RDS(ON) (at VGS=10V) ... See More ⇒

..2. Size:274K inchange semiconductor
aoi7n60.pdf pdf_icon

isc N-Channel MOSFET Transistor AOI7N60 FEATURES Drain Current I = 7.0A@ T =25 D C Drain Source Voltage- V =600V(Min) DSS Static Drain-Source On-Resistance R =1.3 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpose... See More ⇒

8.1. Size:461K aosemi
aoi7n65.pdf pdf_icon

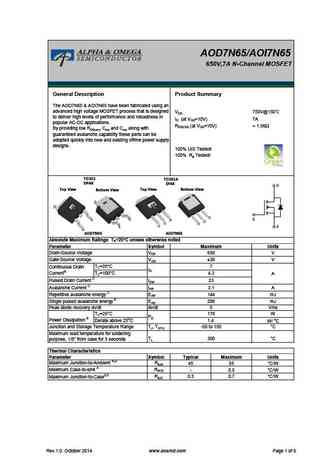

AOD7N65/AOI7N65 650V,7A N-Channel MOSFET General Description Product Summary The AOD7N65 & AOI7N65 have been fabricated using an advanced high voltage MOSFET process that is designed VDS 750V@150 to deliver high levels of performance and robustness in ID (at VGS=10V) 7A popular AC-DC applications. RDS(ON) (at VGS=10V) ... See More ⇒

8.2. Size:274K inchange semiconductor
aoi7n65.pdf pdf_icon

isc N-Channel MOSFET Transistor AOI7N65 FEATURES Drain Current I = 7.0A@ T =25 D C Drain Source Voltage- V =650V(Min) DSS Static Drain-Source On-Resistance R =1.56 (Max) DS(on) 100% avalanche tested Minimum Lot-to-Lot variations for robust device performance and reliable operation DESCRIPTION Designed for use in switch mode power supplies and general purpos... See More ⇒

Detailed specifications: AOI4T60P , AOI508 , AOI510 , AOI514 , AOI516 , AOI530 , AOI538 , AOI5N40 , IRF640N , AOI7N65 , AOI7S65 , AOI8N25 , AOI9N50 , AOK10N90 , AOK18N65 , AOK20N60 , AOK20S60 .
