All MOSFET. TK6A80E Datasheet



TK6A80E Datasheet and Replacement


   Type Designator: TK6A80E
   Type of Transistor: MOSFET
   Type of Control Channel: N -Channel
   Pd ⓘ - Maximum Power Dissipation: 45 W
   |Vds|ⓘ - Maximum Drain-Source Voltage: 800 V
   |Vgs|ⓘ - Maximum Gate-Source Voltage: 30 V
   |Id| ⓘ - Maximum Drain Current: 6 A
   Tj ⓘ - Maximum Junction Temperature: 150 °C
   tr ⓘ - Rise Time: 20 nS
   Cossⓘ - Output Capacitance: 110 pF
   Rds ⓘ - Maximum Drain-Source On-State Resistance: 1.7 Ohm
   Package: TO-220SIS


 TK6A80E substitution

   - MOSFET ⓘ Cross-Reference Search



TK6A80E Datasheet (PDF)

 ..1. Size:271K  toshiba
 tk6a80e.pdf pdf_icon

TK6A80E

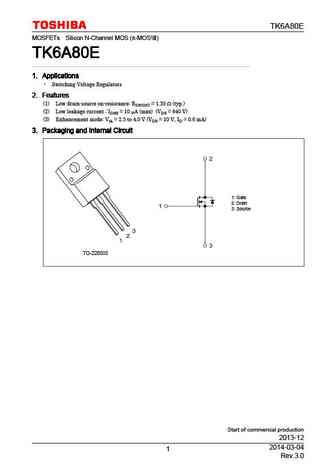

TK6A80EMOSFETs Silicon N-Channel MOS (-MOS)TK6A80ETK6A80ETK6A80ETK6A80E1. Applications1. Applications1. Applications1. Applications Switching Voltage Regulators2. Features2. Features2. Features2. Features(1) Low drain-source on-resistance: RDS(ON) = 1.35 (typ.)(2) Low leakage current : IDSS = 10 A (max) (VDS = 640 V)(3) Enhancement mode: Vth = 2.5

 ..2. Size:240K  inchange semiconductor
 tk6a80e.pdf pdf_icon

TK6A80E

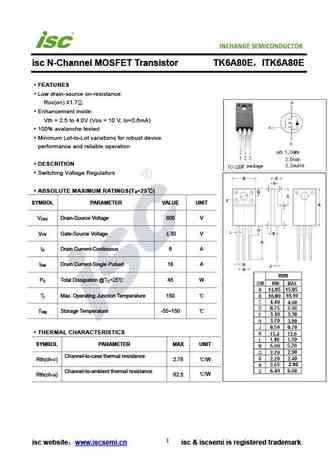

INCHANGE Semiconductorisc N-Channel MOSFET Transistor TK6A80EITK6A80EFEATURESLow drain-source on-resistance:RDS(on) 1.7.Enhancement mode:Vth = 2.5 to 4.0V (VDS = 10 V, ID=0.6mA)100% avalanche testedMinimum Lot-to-Lot variations for robust deviceperformance and reliable operationDESCRITIONSwitching Voltage RegulatorsABSOLUTE MAXIMUM RATINGS(T =25
