STD2955T4G PDF and Equivalents Search



STD2955T4G Specs and Replacement

Type Designator: STD2955T4G

Type of Transistor: MOSFET

Type of Control Channel: P-Channel

Absolute Maximum Ratings

Pd ⓘ - Maximum Power Dissipation: 55 W

|Vds|ⓘ - Maximum Drain-Source Voltage: 60 V

|Vgs|ⓘ - Maximum Gate-Source Voltage: 20 V

|Id| ⓘ - Maximum Drain Current: 12 A

Tj ⓘ - Maximum Junction Temperature: 175 °C

Electrical Characteristics

tr ⓘ - Rise Time: 45 nS

Cossⓘ - Output Capacitance: 150 pF

RDSonⓘ - Maximum Drain-Source On-State Resistance: 0.18 Ohm

Package: DPAK

STD2955T4G substitution

- MOSFET ⓘ Cross-Reference Search



STD2955T4G datasheet

 ..1. Size:144K  onsemi
 std2955t4g.pdf pdf_icon

STD2955T4G

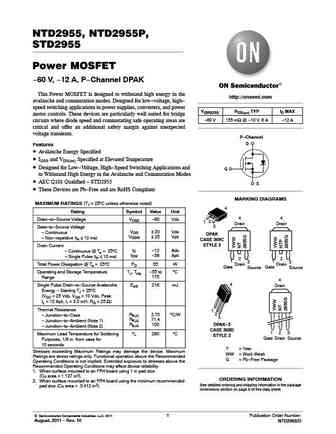

NTD2955, NTD2955P, STD2955 Power MOSFET -60 V, -12 A, P-Channel DPAK This Power MOSFET is designed to withstand high energy in the http //onsemi.com avalanche and commutation modes. Designed for low-voltage, high- speed switching applications in power supplies, converters, and power V(BR)DSS RDS(on) TYP ID MAX motor controls. These devices are particularly well suited for bridge -60 V... See More ⇒

 9.1. Size:427K  st
 std29nf03l.pdf pdf_icon

STD2955T4G

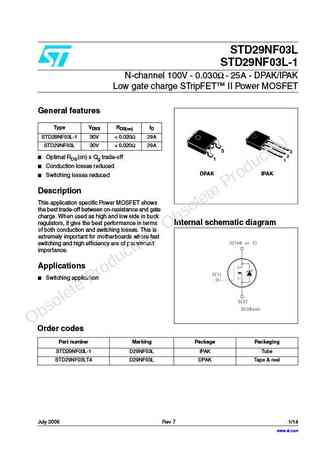

STD29NF03L STD29NF03L-1 N-channel 100V - 0.030 - 25A - DPAK/IPAK Low gate charge STripFET II Power MOSFET General features Type VDSS RDS(on) ID STD29NF03L-1 30V ... See More ⇒

Detailed specifications: STD24N06LT4G, STD25N10F7, STD25NF10L, STD25NF10LT4, STD25NF10T4, STD25NF20, STD26P3LLH6, STD28P3LLH6, 8N60, STD2LN60K3, STD2N105K5, STD2N80K5, STD2N95K5, STD2NK70Z-1, STD2NK70ZT4, STD2NK90ZT4, STD2NM60T4
